Okay, this is question 2862, and we have two long wires that lie along this y -axis that are pointing into the page on the bottom one and out of the, into the page in the bottom and out of the page in the top wire.
00:19
And we want to figure out the magnetic field at point p over here.
00:24
So first, part a asked us to draw the.
00:30
Vectors to show the direction of the magnetic field coming from each wire and then find the net magnetic field.
00:37
So let's think about this first wire up here.
00:44
To find the direction of the magnetic field, we want to use the right -hand rule.
00:49
So to do that, let's point our thumb in the direction of the current, which is out of the page, so pointing out of the page to us.
00:56
And think about what direction our fingers are curling.
01:00
At this point p right here.
01:03
And if we think about that, we're gonna get some field pointing out like this.
01:09
So this is a contribution from the top wire here.
01:13
Let's do the same thing for the bottom wire, where we point our thumb into the page and curl our fingers around.
01:21
That's gonna give us something pointing down into the right like this.
01:26
So this is from the top wire.
01:28
This is from the bottom wire.
01:30
I'll call two.
01:31
So now we just need to add them together to find the net magnetic field.
01:35
And when we add these two together, since the currents here are equal, the magnitudes, the length of the vectors are going to be the same.
01:44
And so the y components are going to cancel out, which means we're only going to add the horizontal components.
01:49
So that's going to give us a big net vector pointing straight to the right like this.
01:56
So this is going to be the direction of the net magnetic field.
02:00
Now part b asks us to find an expression for the magnitude of the magnetic fields at any point on the x -axis in terms of the x -cordinate of the point.
02:12
So what we're going to do here, we need to use our expression.
02:22
B is going to be from one wire.
02:25
We would have, going to have a factor of mu not times pi divided by 2 pi r.
02:38
So this is going to be the expression for r.
02:47
And then we're going to need a factor of sine theta to take into account this angle.
02:54
So this is going to be the expression for the magnetic field.
02:59

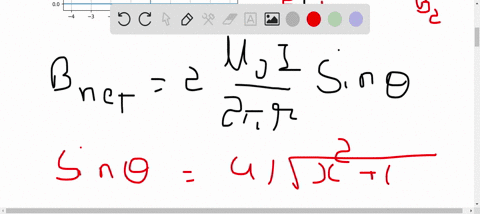

Coming from one of these wires at a point on the x -axis because the x -cordinate here is going to be represented or sorry the the distance the y -cordinate here will be represented by this sine theta now we have two two wires here so what we're going to want to do is just multiply this by a factor of two to get the total net magnetic field and this angle because of the symmetry here these are both still separated by a distance a vertical distance a.
03:33
This angle theta on the bottom is going to be the same.
03:36
So we can just simply multiply this by two.
03:39
That's going to give us, we're going to make these factors of two will cancel out.
03:43
So we're just going to be left with this as our expression.
03:48
Now we don't actually know what sign of theta is.
03:50
So that's going to be our next step.
03:54
If we think about this triangle here, the sign of any angle is the opposite angle over the hypotenuse.
04:03
So we need to find the hypotenuse of this triangle.
04:08
And to do that, we just want to use the pythagorean theorem.
04:12
So using the pythagorean theorem gives us the squared of a squared plus x squared.
04:18
So that's going to be the length of this total distance along the hypotenuse of this triangle here.
04:26
So now remember sign is going to be the opposite, which is a over the hypotenuse.
04:31
So i'm just going to plug that in right here.
04:36
So opposite is a and then divided by the hypotenuse, which is this whole thing.
04:45
So this is.....
