The A992 steel rod is subjected to the loading shown. If the cross-sectional area of the rod is

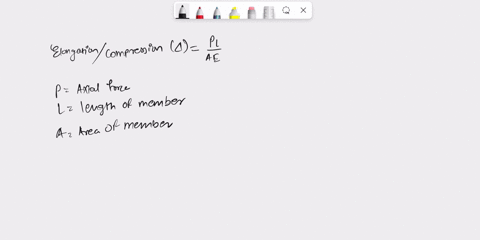

step 1 Hi friends here we have to find displacement of a as given in the figure displacement is defined

The A992 steel rod is subjected to the loading shown. If the...

Key Concepts

Axial Deformation

Axial deformation is the change in length that a structural member experiences when subjected to axial forces. It is computed by relating the internal force, cross-sectional area, material stiffness (Young’s modulus), and the member’s original length. This concept is essential when analyzing how elements extend or compress under load.

Method of Integration for Displacement

When the internal axial force is not constant along the length of a member, the displacement must be determined by integrating the strain (which is the force divided by the product of the cross-sectional area and Young's modulus) over the length of the member. This method allows for the calculation of total displacement even under varying load distributions.

Structural Boundary Conditions

Boundary conditions define how a structural member is supported or connected to other members. In analysis, simplifying assumptions such as neglecting the size of couplings can be made to focus on the primary effects of loading. Properly accounting for these conditions is crucial since they directly affect the internal force distribution and resulting deformations.

Stress-Strain Relationship

The stress-strain relationship, often described by Hooke’s Law for elastic materials, connects the applied stress (force per unit area) with the resulting strain (relative deformation). Young’s modulus is used as the proportionality constant in this relationship, making it a key factor in predicting how materials will deform under axial loads.
