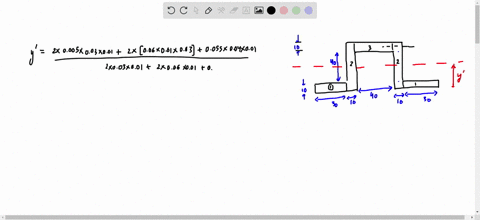

The aluminum strut is 10 mm thick and has the cross section shown. If it is subjected to a shear

step 1 This question is the same as previous question, but this time we have to find the maximum shear

The aluminum strut is 10 mm thick and has the cross section...

Key Concepts

First Moment of Area (Q)

The first moment of area is used in shear stress analysis to determine how the area is distributed about a given axis within the cross-section. It is calculated by multiplying the area of a segment by the distance from its centroid to the neutral axis, and it plays a crucial role in finding the shear flow and corresponding shear stress.

Moment of Inertia (I)

The moment of inertia quantifies a cross-section's resistance to bending and is an essential parameter in both bending and shear analyses. For shear flow calculations, it helps normalize the contribution of the first moment of area to determine the resulting shear stress distribution across the beam or strut.

Shear Flow

Shear flow represents the distribution of shear force along a cross?section of a structural member, measured as force per unit length. It is particularly useful in analyzing thin-walled sections where the load is transferred along the thickness of the wall, and is calculated using the relationship q = ?t, linking shear stress and wall thickness.

Shear Stress Distribution

Shear stress in a beam or strut is not uniform across the cross-section. Instead, it varies depending on the location within the cross-section, which is determined by performing an analysis of the first moment of area. This distribution is essential for identifying points within the section that may experience maximum stress.

Thin-Walled Beam Theory

In structures where one dimension (typically the thickness) is much smaller than the other dimensions, the thin-walled beam theory is applied. This approach simplifies the analysis by assuming that shear flow is uniformly distributed along the wall thickness, making it possible to use simplified relationships to assess the internal stresses.
