The beam has a rectangular cross section and is subjected to...

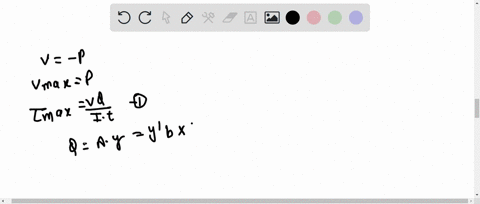

The beam has a rectangular cross section and is subjected to a load $P$ that is just large enough to develop a fully plastic moment $M_{p}=P L$ at the fixed support. If the material is elastic-plastic, then at a distance $x<L$ the moment $M=P x$ creates a region of plastic yielding with an associated elastic core having a height $2 y^{\prime}$. This situation has been described by Eq. $6-30$ and the moment $\mathbf{M}$ is distributed over the cross section as shown in Fig. $6-48 e$ Prove that the maximum shear stress developed in the beam is given by $\tau_{\max }=\frac{3}{2}\left(P / A^{\prime}\right),$ where $A^{\prime}=2 y^{\prime} b,$ the cross-sectional area of the elastic core.

Key Concepts

Elastic-Plastic Behavior

This concept involves understanding material response when a structure is loaded beyond the elastic limit. In the elastic region, deformations are reversible, while in the plastic region, permanent deformations occur. Elastic-plastic analysis is crucial because many structural elements, when subjected to high loads, do not behave uniformly along the entire cross section; instead, some regions yield while others remain elastic. This mixed behavior must be accounted for when determining load-carrying capacities and designing resilient structures.

Plastic Hinge Formation

A plastic hinge is a localized region in a beam or other structural member where plastic deformations have accumulated up to a point that rotational movement occurs with little or no additional moment. This is a critical concept in plastic analysis, where the development of a plastic hinge implies that the maximum moment has been reached and redistributed. The study of plastic hinges helps in understanding ultimate load conditions and failure mechanisms in structures.

Moment Distribution in Beams

The bending moment in a beam is not uniformly distributed across its cross section when the material yields. Instead, under increasing load, a plastic region forms where the moment has reached its plastic capacity, while an elastic core remains where the material is still behaving elastically. Analyzing this distribution is important to accurately predict stresses and deformations, particularly in beams under high loading conditions.

Shear Stress Distribution

In the context of bending and plasticity, the shear stress distribution is a key factor governing the performance of a beam. Maximum shear stress typically occurs at critical locations and is influenced by the cross-sectional geometry, especially the area over which the elastic response is active. The relationship between the applied load, the effective area of the elastic core, and the resultant shear stress is crucial for ensuring that the beam's design prevents premature shear failure.
