The brakes on a bus fail as it approaches a turn. The bus is...

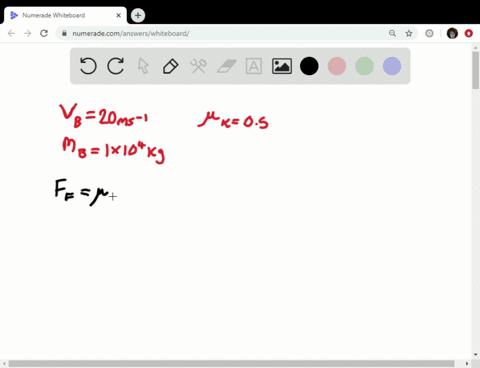

The brakes on a bus fail as it approaches a turn. The bus is traveling at the speed limit before it moves about 23 $\mathrm{m}$ across grass before hitting a wall. A bicycle on the bike rack on the front of the bus is crushed, but there is little damage to the bus. (a) Draw force diagrams for the bus and the wall during the collision. (b) Estimate the average force that the bicycle and bus exert on the wall while stopping. Indicate any assumptions made in your estimate.

The brakes on a bus fail as it approaches a turn. The bus is traveling at the speed limit before it moves about 23 $\mathrm{m}$ across grass before hitting a wall. A bicycle on the bike rack on the front of the bus is crushed, but there is little damage to the bus. (a) Draw force diagrams for the bus and the wall
during the collision. (b) Estimate the average force that the bicycle and bus exert on the wall while stopping. Indicate any assumptions made in your estimate.

Key Concepts

Kinematics of Deceleration

The kinematics of deceleration involves using the equations of motion to understand how an object's speed decreases over time or distance. In estimating collision forces, assuming a constant deceleration allows one to relate the initial speed, stopping distance, and time interval to find the average force acting during the collision.

Work-Energy Principle

The work-energy principle states that the work done by the forces acting on an object causes a change in its kinetic energy. In the context of a collision, this principle can be used to estimate the average force by equating the work done (force multiplied by stopping distance) to the loss of kinetic energy of the moving object.

Newton's Third Law

Newton's Third Law states that for every action, there is an equal and opposite reaction. This concept is crucial for collision scenarios because it explains why forces are experienced equally by interacting bodies, such as the bus and the wall or the bicycle and the wall, helping to understand the dynamics of impact.

Free-Body Diagram

A free-body diagram is a graphical representation that shows all the forces acting on an object. In collision problems, these diagrams help in visualizing the various forces (such as contact forces, reaction forces, friction, and impact forces) acting on both bodies involved, making it easier to set up the equations of motion.

Impulse-Momentum Theorem

The impulse-momentum theorem relates the impulse applied to an object (the product of the average force and the duration of impact) to the change in its momentum. This principle is essential for estimating average forces during collisions by linking the change in momentum to the average stopping force over the time interval of the impact.
