The capacitors in Fig, 25-38 are initially uncharged. The capacitances are C1=4.0 μF, C2=8.0 μF,

The capacitors in Fig, 25-38 are initially uncharged. The...

Key Concepts

Capacitance

Capacitance is a measure of a capacitor’s ability to store electric charge per unit voltage. It defines how much charge is stored on the capacitor for a given potential difference, as expressed by the relation Q = CV, where Q is the charge, C is the capacitance, and V is the voltage. This concept is fundamental when analyzing circuits with capacitors since it directly influences the charge accumulation and voltage distribution in the circuit.

Charge Distribution in Capacitor Circuits

When several capacitors in a circuit are connected to a voltage source, they share and distribute charge depending on their configuration (series or parallel) and individual capacitance values. Understanding how capacitors charge and equilibrate in the network is crucial for determining the final charge on each capacitor and predicting the overall behavior of the circuit once equilibrium is achieved.

Conservation of Charge

The principle of charge conservation states that the total electric charge in an isolated system remains constant over time. In capacitor circuits, this means that the sum of the charges delivered by the battery is equal to the sum of the charges stored across the capacitors. This principle is essential for analyzing transient processes and determining the amount of charge that flows through different points in a circuit after a switch is closed.

Electron Charge and Quantization

Electrons are the fundamental carriers of charge in circuits, each carrying a fixed elementary charge. By knowing the total charge transferred in a circuit and the magnitude of the charge on a single electron, one can calculate the number of electrons that move through any point. This conversion between macroscopic charge and the discrete number of electron charges is important for understanding the microscopic basis of current flow.

Electron Flow Versus Conventional Current

In electrical circuits, electrons move in the direction opposite to conventional current, which is defined as the flow of positive charge. Understanding this difference is important when analyzing the direction of electron movement relative to the labeled current directions in circuit diagrams. This concept helps clarify why, for certain points in a circuit, electrons might be moving upward even as the conventional current appears to flow downward, or vice versa.

Transcript

00:01 In this question, we are given this circuit diagram with all three capacitors.

00:06 And we want to find the number of electrons travel through points a, b, c and d.

00:13 Given the capacitance of the capacitors, c1 is 4 microferret, c2 is 8 microferred, c3 is 12 microferred.

00:22 And then we also want to figure out whether the electrons travel up or down through point b and c okay points b and c okay so before we start doing the calculation okay there are a few things you can do when the when the switch is closed okay so when the switch is closed right so we can immediately tell that this is going to be a positively charged plate positive positive positive negative negative negative negative here will be negative and then this will be positive okay right so yeah so the side with a is connected to the positive terminal the battery so it will be positively charged and then the left plate of c3 here is going to be negatively charged because it's connected to the negative terminal of the battery okay so to find out the number of electrons that travel through a point a b c and d what we can do first is to redraw the circuit.

01:32 So, we draw a circuit.

01:40 Yeah, by trying to find out what's the total, what's the equivalent capacitance? so, so c1 and c2 are in parallel, right? so the parallel capacitors, the capacitors in parallel, now we just need to add up their capacitancees okay so we get so c1 and c2 when you add up you get 12 micro ferret and then in series you see 3 12 micro ferret okay this is this is what we get okay so the 12 micro ferret will be in series and this becomes okay so just just to recall capacitors in in parallel, okay, ceq is equal to c1 plus c2, and then capacitors in series, the equivalent capacitance is one over c1, 1 over cq is 1 over c1 plus 1 over c2.

02:57 So who you get, so if the capacitance are the same, then you get half of it, okay? alright, so from this diagram, you can calculate the charge stored in a circuit.

03:22 This is equal to c equivalence times the voltage of the battery.

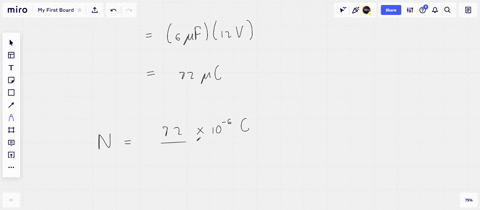

03:30 So we have 6 micro ferret times 12.

03:37 So we get 72 microcolum.

03:40 Okay, so you expect point a and point d.

03:45 So if we look at the redrawn circuit, this will be our point a and then this will be our point d.

03:57 Okay, yeah, so point a and d will have the same charge, based on the diagram.

04:06 And then we can actually calculate the number of electrons.

04:11 Number of electrons and the charge is 72 microculum okay so the number electrons through point a okay this will be q divided by e, okay 72 times 10 to the negative 6 divided by 1 .6 times 10 to the negative 19 and you get 4 .5 times 10 to the 14.

04:42 So this is the answer for point a.

04:47 Okay, then you points b and c.

04:52 Okay, so one thing we know is that the voltage across this capacitor is 6 watts.

04:59 Okay, so q1 will be c1 times 6 volts, q2 will be c2 times 6 volts, okay, because q equals to cv...
