The column is constructed from high-strength concrete and...

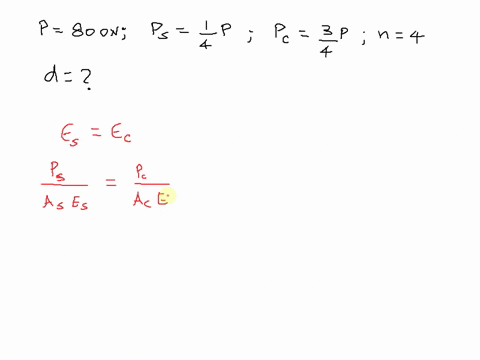

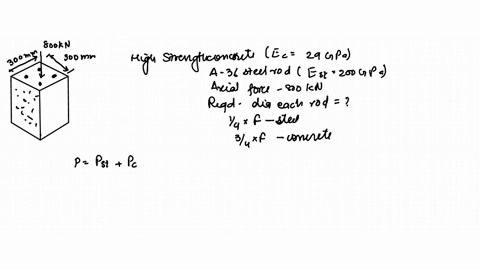

The column is constructed from high-strength concrete and four $A-36$ steel reinforcing rods. If it is subjected to an axial force of $800 \mathrm{kN}$, determine the required diameter of each rod so that one-fourth of the load is carried by the steel and three-fourths by the concrete. $E_{4}=200 \mathrm{GPa}, E_{\mathrm{c}}=25 \mathrm{GPa}$.

Key Concepts

Composite Action

Composite action refers to the structural behavior that results when two or more materials work together to resist loads. In reinforced concrete columns, the concrete and the reinforcing steel interact to carry and distribute loads more efficiently than either material could alone. The effectiveness of composite action depends on appropriate bonding and compatibility between the materials, ensuring that each reaches its load-carrying capacity without premature failure.

Load Distribution Based on Material Stiffness

In composite structures, different materials carry different proportions of the applied load based on their stiffness, which is quantified by the modulus of elasticity. When an axial force is applied, a stiffer material (with a higher modulus) will carry a larger share of the load compared to a less stiff material. This concept is crucial in design, as it allows engineers to predict load sharing between, for example, steel and concrete in a column.

Stress and Strain in Axial Loading

Under axial loading, materials experience stress and strain, which are directly related to the applied force and the cross-sectional area of the material. Understanding how stress is distributed within each component of a composite section is essential for ensuring that no part exceeds its structural capacity. This involves using the basic relationship between load, area, and stress, and ensuring compatibility of strains between materials.

Cross-Sectional Area and Diameter Calculations

Determining the cross-sectional area required for a reinforcing element involves using the relationship between the stress it must carry and its material properties. Once the necessary area is computed, it is translated into a dimensional parameter such as the diameter for circular reinforcement rods. This conversion is a fundamental step in designing reinforcement to meet both strength and serviceability criteria in concrete structures.
