The drawing shows a uniform horizontal beam attached to a...

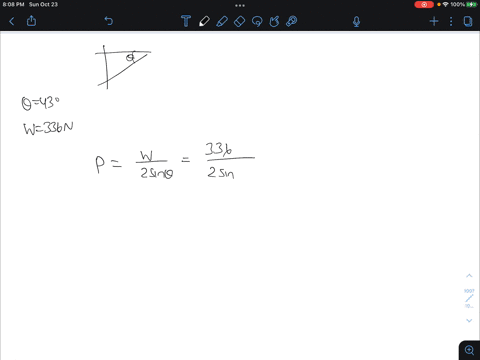

The drawing shows a uniform horizontal beam attached to a vertical wall by a frictionless hing and supported from below at an angle $\theta=39^{\circ}$ by a brac that is attached to a pin. The beam has a weight of 34 N. Three additional forces keep the beam in equilibrium The brace applies a force $\overrightarrow{\mathbf{P}}$ to the right end of the beam that is directed upward at the angle $\theta$ with respect to the horizontal. The hinge applies a force to the left end of the beam that has a horizontal component $\overrightarrow{\mathbf{H}}$ and a vertical component $\overrightarrow{\mathbf{V}}$. Find the magnitudes of these three forces.

The drawing shows a uniform horizontal beam attached to a vertical wall by a frictionless hing and supported from below at an angle $\theta=39^{\circ}$ by a brac that is attached to a pin. The beam has a weight of 34
N. Three additional forces keep the beam in equilibrium The brace applies a force $\overrightarrow{\mathbf{P}}$ to the right end of the beam that is directed upward at the angle $\theta$ with respect to the horizontal. The hinge applies a force to the left end of the beam that has a horizontal component $\overrightarrow{\mathbf{H}}$ and a vertical component $\overrightarrow{\mathbf{V}}$. Find the magnitudes of these three forces.

Key Concepts

Reaction Forces at Supports

Reaction forces occur at points where the beam is supported or connected, such as hinges or pins. These forces typically have both horizontal and vertical components. In the problem, the hinge reaction force is split into its horizontal and vertical components, which must be considered separately to satisfy the conditions of static equilibrium.

Force Decomposition

Force decomposition is the process of breaking a force into its horizontal and vertical components. This is crucial when dealing with forces applied at an angle, as it allows the separate analysis of forces in each orthogonal direction in order to apply the equilibrium condition for net forces.

Free-Body Diagram

A free-body diagram is a graphical representation of a body isolated from its surroundings with all the external forces and moments acting upon it. By drawing a free-body diagram for the beam, one can clearly identify the weight, the force due to the brace, and the reaction forces at the hinge, which are essential steps in setting up the equilibrium equations.

Torque Equilibrium

Torque equilibrium (or moment equilibrium) requires that the sum of all torques about any pivot point is zero. In the context of a beam with multiple forces acting on it, calculating torques about a convenient point (often the hinge) helps to eliminate unknown forces and facilitates solving for the other applied forces.

Static Equilibrium

This concept involves ensuring that a system at rest has no net force and no net moment acting on it. In problems like this one, the conditions of static equilibrium (sum of forces equals zero in both the horizontal and vertical directions, and the sum of torques equals zero) are used to set up equations that determine unknown forces and moments.
