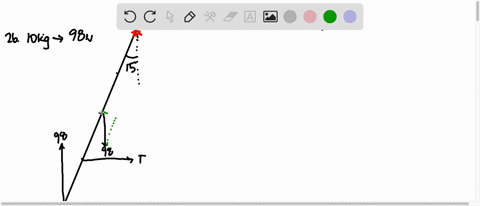

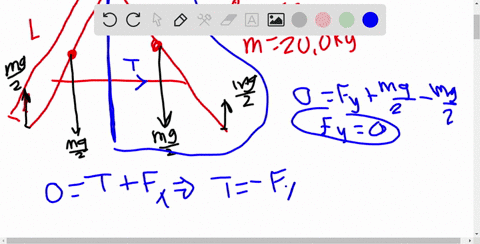

The drawing shows an A-shaped stepladder. Both sides of the ladder are equal in length. This ladder is standing on a frictionless horizontal surface, and only the crossbar (which has a negligible mass) of the "A" keeps the ladder from collapsing. The ladder is uniform and has a mass of $20.0 \mathrm{kg}$. Determine the tension in the crossbar of the ladder.

Key Concepts

Geometric Analysis in Structures

In many mechanics problems, especially those involving structures like ladders or beams, understanding the geometry—such as lengths, angles, and symmetry—helps determine the lever arms for the forces involved. This geometric insight is crucial to accurately calculating the balance of forces and moments in the system.

Center of Mass

The center of mass is the effective point where the total mass of a uniform body can be considered to be concentrated. For a uniform object, this simplifies the analysis of gravitational forces and moments, as its weight can be assumed to act through this point, greatly aiding in setting up equilibrium equations.

Static Equilibrium

In statics, a system is said to be in static equilibrium when both the net forces and the net torques (moments) acting on it are zero. This fundamental condition allows analysis by setting up equations that balance forces in different directions and torques about a pivot point, which is critical when determining unknown quantities such as tensions in any support or connecting member.

Torque (Moment) Balance

Torque is the measure of the tendency of a force to rotate an object about an axis. In problems involving rotational equilibrium, torques about any chosen pivot point must sum to zero. This concept is used to relate the forces acting at different distances from a pivot, thereby allowing the computation of internal forces or tensions in structural components.
