The drawing shows an outstretched arm (0.61 m in length) that is parallel to the floor. The arm

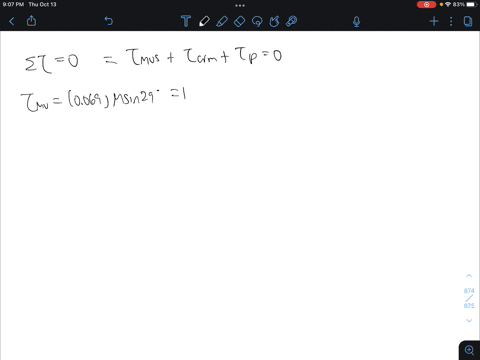

step 1 So in this problem, we are in equilibrium. So the sum of the torques is going to be equal to zer

The drawing shows an outstretched arm (0.61 m in length)...

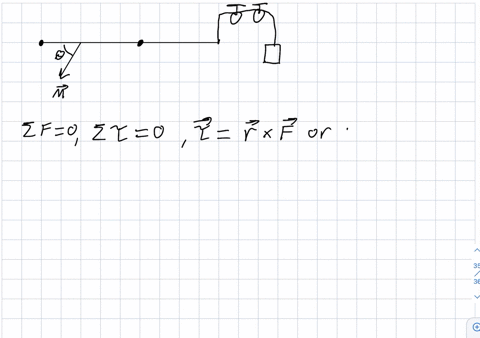

The drawing shows an outstretched arm $(0.61 \mathrm{m}$ in length) that is parallel to the floor. The arm is pulling downward against the ring attached to the pulley system, in order to hold the $98-N$ weight stationary. To pull the arm downward, the latissimus dorsi muscle applies the force $\overrightarrow{\mathbf{M}}$ in the drawing, at a point that is $0.069 \mathrm{m}$ from the shoulder joint and oriented at an angle of $29^{\circ} .$ The arm has a weight of $47 \mathrm{N}$ and a center of gravity (cg) that is located 0.28 $\mathrm{m}$ from the shoulder joint. Find the magnitude of $\overrightarrow{\mathbf{M}}$

Key Concepts

Center of Mass

The center of mass is the average location of an object's mass and is the point where the gravitational force can be considered to act. In biomechanics, knowing the center of mass of a limb is crucial for accurately computing the torque due to the limb's weight about a joint.

Static Equilibrium

Static equilibrium occurs when an object remains at rest, meaning both the net force and the net torque acting on it are zero. This principle is fundamental in solving problems where the forces and torques are balanced, such as in assessing the forces in human limbs during different tasks.

Trigonometric Force Decomposition

When a force is applied at an angle, it is often necessary to decompose it into components using trigonometric functions. This allows for the correct calculation of the effective force contributing to torque by isolating the component perpendicular to the lever arm. This concept is important for analyzing forces in various applied mechanics and biomechanics problems.

Torque

Torque, or moment, is a measure of the rotational effect produced by a force applied at a distance from a pivot point. It is calculated as the product of the force and the length of the lever arm (the perpendicular distance from the pivot to the line of action of the force). Understanding torque is essential when analyzing forces in rotational systems or limbs.

Lever Arm

The lever arm is the perpendicular distance from the axis of rotation to the line of action of a force. It plays a critical role in determining the magnitude of torque produced by a force. A longer lever arm increases the torque for a given force, which is a key concept in mechanics and biomechanics.
