The drawing shows four different situations in which a light...

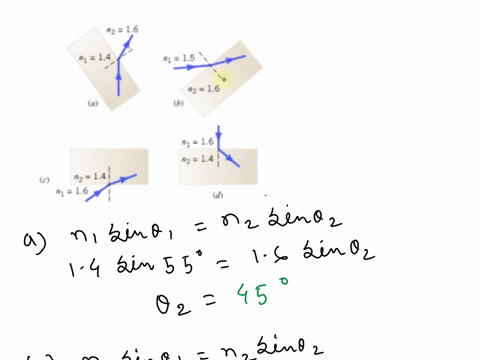

The drawing shows four different situations in which a light ray is traveling from one medium into another. In some of the cases, the refraction is not shown correctly. For cases $(a),(b),$ and $(c),$ the angle of incidence is $55^{\circ} ;$ for case $(d),$ the angle of incidence is $0^{\circ} .$ Determine the angle of refraction in each case. If the drawing shows the refraction incorrectly, explain why it is incorrect.

Key Concepts

Geometrical Representation of Refraction

This concept involves accurately drawing the incident and refracted rays according to the computed angles based on Snell's Law. The normal line is critical in measurements, and any diagrammatic error—such as misrepresenting the angles or the bending direction—results in an incorrect depiction of the physical behavior of light at the boundary between media.

Snell's Law

This fundamental law describes how light bends when it passes from one medium to another. It states that the product of the refractive index of the first medium and the sine of the angle of incidence is equal to the product of the refractive index of the second medium and the sine of the angle of refraction. In other words, n1*sin(?1) = n2*sin(?2), which governs the relationship between the angles of incidence and refraction.

Index of Refraction

The index of refraction is a measure of how much a medium slows down light compared to the speed of light in a vacuum. Different media have different indices of refraction, and the change in speed when light enters a new medium causes it to change direction. Understanding these indices is crucial for applying Snell's Law correctly.

Angle of Incidence and Angle of Refraction

The angle of incidence is the angle between the incoming light ray and the normal (a line perpendicular to the surface) at the point of contact, while the angle of refraction is the angle between the refracted ray and the normal in the second medium. Correct determination of these angles is essential for accurately depicting the bending of light as it passes through different media.
