The drawing shows the top view of two doors. The doors are...

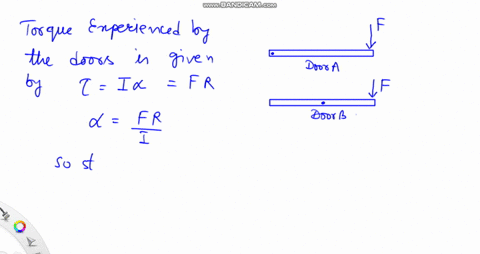

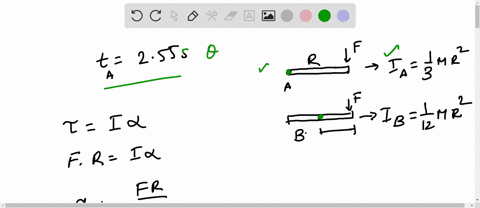

The drawing shows the top view of two doors. The doors are uniform and identical. Door A rotates about an axis through its left edge, and door $\mathrm{B}$ rotates about an axis through its center. The same force $\overrightarrow{\mathbf{F}}$ is applied perpendicular to each door at its right edge, and the force remains perpendicular as the door turns. No other force affects the rotation of either door. Starting from rest, door A rotates through a certain angle in 3.00 s. How long does it take door B (also starting from rest) to rotate through the same angle?

Key Concepts

Axis of Rotation

The axis of rotation is the line around which an object rotates. The position of the axis relative to the object's mass distribution is critical because it influences both the lever arm used in calculating torque and the moment of inertia. Changing the pivot location alters the dynamics of the rotation significantly.

Angular Acceleration

Angular acceleration is the rate at which the angular velocity of an object changes over time. According to Newton's second law for rotation, it is determined by the net torque acting on the object divided by its moment of inertia. This relationship helps predict how rapidly a rotating body will speed up or slow down when subjected to a torque.

Rotational Kinematics

Rotational kinematics involves the set of equations that describe the rotational analogs of linear motion parameters such as angular displacement, angular velocity, angular acceleration, and time. These equations, under constant angular acceleration, allow one to relate the rotation angle travelled to the applied torque and the moment of inertia, thereby predicting the time evolution of the rotation.

Torque

Torque is the measure of the force's tendency to cause an object to rotate about an axis. It is given by the product of the applied force and the perpendicular distance (lever arm) from the axis of rotation. This concept is crucial for understanding how applied forces generate rotational motion.

Moment of Inertia

The moment of inertia is the rotational equivalent of mass in translational motion. It quantifies an object's resistance to changes in its rotational state and depends on both the mass of the object and its distribution relative to the axis of rotation. A change in the axis, such as moving it away from the center, significantly alters the moment of inertia.
