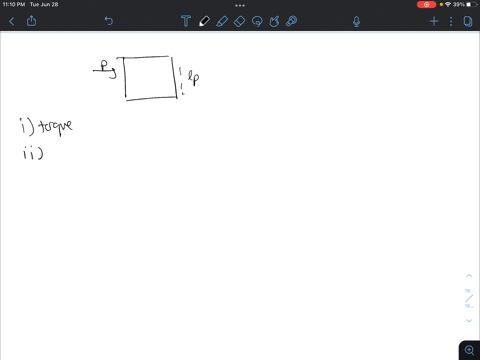

The figure shows a uniform crate resting on a horizontal surface. The crate has a square cross section and a weight of $W=580 \mathrm{N},$ which is uniformly distributed. At the bottom right edge of the surface is a small obstruction that prevents the crate from sliding when a horizontal pushing force $\overrightarrow{\mathbf{P}}$ is applied to the left side. However, if this force is great enough, the crate will begin to tip and rotate over the obstruction. Concepts: (i) What causes the tipping $-$ the force $\overrightarrow{\mathbf{P}}$ or the torque that it creates? (ii) Where should $\overrightarrow{\mathbf{P}}$ be applied so that a minimum force will be necessary to provide the necessary torque? In other words, should the lever arm be a minimum or a maximum? Calculations: Determine the minimum pushing force that leads to tipping.

Key Concepts

Center of Mass

The center of mass is the point where the mass of an object is considered to be concentrated. For uniformly distributed mass, this point is typically at the geometric center. The gravitational force acting through the center of mass creates a counter-torque that resists tipping, which must be overcome by the applied torque for rotation to commence.

Rotational Equilibrium

Rotational equilibrium occurs when the sum of the torques acting on a body about a pivot point is zero, meaning there is no net angular acceleration. In tipping scenarios, ensuring that the applied torque exceeds the restoring torque (due to gravity acting at the center of mass) is essential to initiate rotation around the pivot.

Torque

Torque, also known as the moment of force, is a measure of a force's tendency to produce rotation about a pivot or fulcrum. In the context of a tipping object, torque is calculated as the product of the applied force and its lever arm, and it determines whether the force is sufficient to overcome the stabilizing moments (like that due to gravity) keeping the object in equilibrium.

Lever Arm

The lever arm is the perpendicular distance from the pivot point to the line of action of the force. It directly affects the magnitude of the torque generated; a longer lever arm produces a larger torque for the same applied force. Optimizing the point of application of a force, so that the lever arm is maximized, is key to reducing the force needed to tip an object.
