The following data show the number of hours studied for an exam, $x,$ and the grade received on the exam, $y$ (y is measured in 10 s; that is, $y=8$ means that the grade, rounded to the nearest 10 points, is 80 ). $$\begin{array}{llllllllllllllll} \hline x & 2 & 3 & 3 & 4 & 4 & 5 & 5 & 6 & 6 & 6 & 7 & 7 & 7 & 8 & 8 \\ y & 5 & 5 & 7 & 5 & 7 & 7 & 8 & 6 & 9 & 8 & 7 & 9 & 10 & 8 & 9 \\ \hline \end{array}$$ a. Draw a scatter diagram of the data. b. Find the equation of the line of best fit and graph it on the scatter diagram. c. Find the ordinates $\hat{y}$ that correspond to $x=2,3,4,5$ $6,7,$ and 8. d. Find the five values of $e$ that are associated with the points where $x=3$ and $x=6$. e. Find the variance $s_{e}^{2}$ of all the points about the line of best fit.

The following data show the number of hours studied for an exam, $x,$ and the grade received on the exam, $y$ (y is measured in 10 s; that is, $y=8$ means that the grade, rounded to the nearest 10 points, is 80 ).
$$\begin{array}{llllllllllllllll}
\hline x & 2 & 3 & 3 & 4 & 4 & 5 & 5 & 6 & 6 & 6 & 7 & 7 & 7 & 8 & 8 \\
y & 5 & 5 & 7 & 5 & 7 & 7 & 8 & 6 & 9 & 8 & 7 & 9 & 10 & 8 & 9 \\
\hline
\end{array}$$

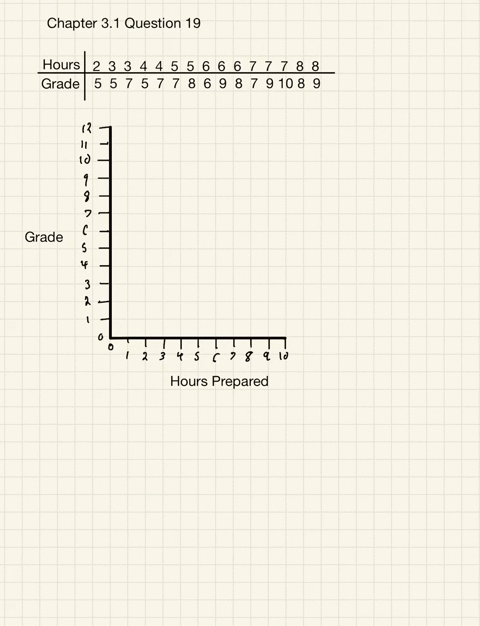

a. Draw a scatter diagram of the data.
b. Find the equation of the line of best fit and graph it on the scatter diagram.
c. Find the ordinates $\hat{y}$ that correspond to $x=2,3,4,5$ $6,7,$ and 8.
d. Find the five values of $e$ that are associated with the points where $x=3$ and $x=6$.
e. Find the variance $s_{e}^{2}$ of all the points about the line of best fit.

Key Concepts

Variance of Residuals

The variance of residuals is a measure of the spread or dispersion of the residuals around zero. It quantifies how much the actual data points deviate from the predicted values on average and is used to assess the goodness of fit of the regression model. A lower residual variance indicates a better fit of the model to the data.

Residuals

Residuals are the differences between the observed values and the fitted (predicted) values provided by the regression model. They measure the error or deviation of the model’s predictions from the actual data and are crucial for diagnosing the model's accuracy and appropriateness.

Predicted Values

Predicted values, often denoted by ?, are the estimated outcomes calculated by the regression equation for given values of the independent variable. They represent the values of the dependent variable that the model would predict for specified inputs.

Line of Best Fit

The line of best fit, also known as the regression line, is a straight line drawn through the data points on a scatter plot that best represents the relationship between the two variables. It minimizes the total distance of the points from the line, typically using the least squares method, to provide the most accurate linear model of the data.

Scatter Diagram

A scatter diagram (or scatter plot) is a graphical representation of paired data. It displays one variable along the x-axis and another along the y-axis to visually assess any relationship or trend between them. This can allow one to detect patterns, clusters, or outliers in the data before further analysis.

Least Squares Regression

Least squares regression is a statistical method used to determine the line of best fit by minimizing the sum of the squares of the vertical distances (residuals) between observed data points and the values predicted by the linear model. This method ensures that the overall error of the predictions is as low as possible.

Transcript

00:01 All right.

00:03 So now i have all the data entered in here in yellow.

00:09 And i'm going to insert a chart.

00:17 And this chart, i don't really like that it's right on top of my data, but whatever.

00:25 Grades are on the y -axis, number of our study that are on the x -axis, but i want a scatter plot.

00:35 And in my scatter plot, oh, good, it's x and y.

00:39 Now, add the line, trend line, linear.

00:49 Use the equation.

00:51 There we got it.

00:54 So there's our equation and let's figure out what questions we're supposed to answer.

01:05 Find the ordinance that correspond to 0, 2, 4, 5, 6, 7, and 8.

01:13 Not 0, just 2, 3, 2, 3, 4, 5, 6, 7, 8, which is actually all of them.

01:24 So what i'm going to do is i'm going to take this here, and i'm going to paste it over here, paste special values only.

01:50 Okay.

01:52 So this is the actual data here.

01:57 The predicted data is using the equation.

02:02 0 .625 times x plus 3 .96.

02:19 That's what it would predict.

02:24 All right.

02:27 So here are the predictions for two hours, three hours, four hours, five hours, six, seven, and eight hours.

02:39 Find the values of e, the errors that are associated with the points where x is three, and x is six.

02:51 But when x is three, all i want is the error, okay, equals this minus this...
