The hydrogen spectrum includes a red line at 656 nm and a blue-violet line at 434 nm. What are t

step 1 Okay, so this problem, we have our grading, we have our center line. We're going to have a red l

The hydrogen spectrum includes a red line at 656 nm and a...

The hydrogen spectrum includes a red line at $656 \mathrm{nm}$ and a blue-violet line at $434 \mathrm{nm}$. What are the angular separations between these two spectral lines for all visible orders obtained with a diffraction grating that has 4500 grooves/cm?

Key Concepts

Diffraction Grating

A diffraction grating is an optical component with a regular pattern of lines or grooves that disperses incident light into its separate wavelengths by means of interference. Its performance depends on the spacing between grooves and allows precise separation of light into its spectral components.

Grating Equation

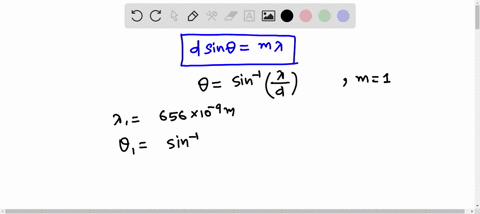

The grating equation, given by d sin(?) = m?, is fundamental for predicting the angles at which different wavelengths will be diffracted from the grating. In this equation, d is the distance between adjacent grooves, ? is the diffraction angle, m is the diffraction order, and ? is the wavelength of light.

Wavelength Dispersion and Angular Separation

Angular dispersion refers to the separation of light into different angles based on wavelength due to the diffraction grating. The difference in angles between spectral lines, such as those from hydrogen’s red and blue lines, is determined by differences in their wavelengths in the grating equation, thereby allowing the calculation of their angular separation.

Groove Density and Slit Spacing

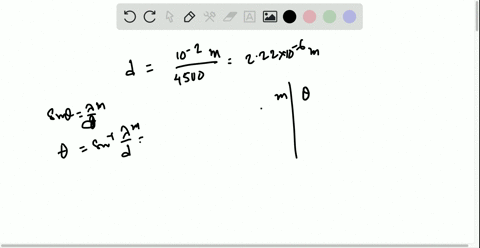

The groove density, typically given in grooves per unit length (such as grooves per centimeter), directly influences the slit spacing (d) of the grating. Converting groove density to the spacing between grooves is crucial since it is used in the grating equation to relate the physical structure of the grating to the observed angular positions of diffracted light.
