Question

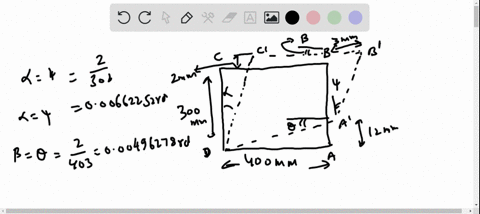

The piece of plastic is originally rectangular. Determine the shear strain $\gamma_{x y}$ at corners $D$ and $C$ if the plastic distorts as shown by the dashed lines.
Step 1
According to the explanation, the angle $f$ is given by $\frac{2}{403}$. \[f = \frac{2}{403}\] Show more…
