The plastic tube in Fig. 14-30 has a cross-sectional area of 5.00 cm^2. The tube is filled with

step 1 So here we can say that our area A would be equal to 0 .0005 .000 square meters. We know that th

The plastic tube in Fig. 14-30 has a cross-sectional area of...

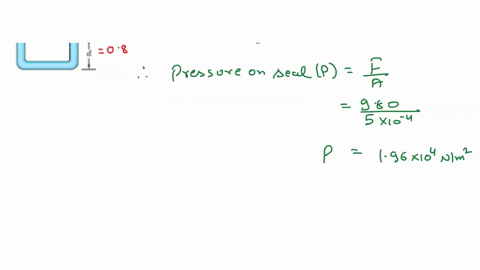

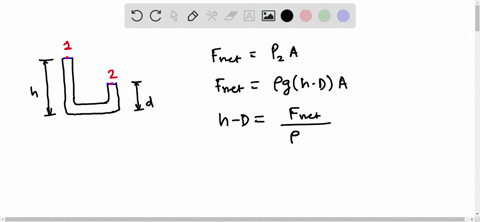

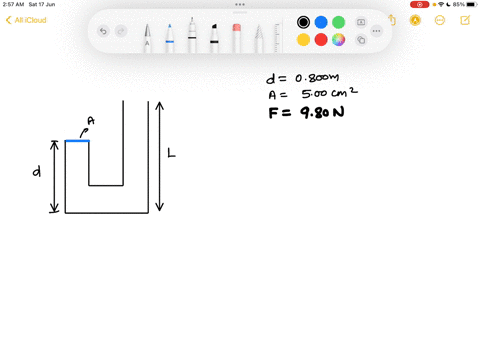

The plastic tube in Fig. 14-30 has a cross-sectional area of $5.00 \mathrm{~cm}^{2}$. The tube is filled with water until the short arm (of length $d=0.800 \mathrm{~m}$ ) is full. Then the short arm is sealed and more water is gradually poured into the long arm. If the seal will pop off when the force on it exceeds $9.80 \mathrm{~N}$, what total height of water in the long arm will put the seal on the verge of popping?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Hydrostatic Pressure

Hydrostatic pressure refers to the pressure exerted by a fluid at equilibrium due to the force of gravity. It increases with depth according to the relationship P = ?gh, where ? is the fluid density, g is the acceleration due to gravity, and h is the height of the fluid column. This principle is essential for understanding how pressure differences develop in different segments of fluid columns.

Pressure-Force Relationship

The pressure-force relationship is defined by the equation F = PA, where F is the force applied over an area A by a fluid at pressure P. This concept is key when determining the force exerted by a fluid on a barrier, such as a seal, as it relates the cumulative effect of local pressure differences integrated over a specific surface area.

Sealed Container Dynamics

In a sealed container with connected arms, variations in fluid heights lead to unequal hydrostatic pressures. When one arm is sealed, additional fluid in the other arm changes the pressure balance, resulting in a net force acting on the sealing interface. Understanding how sealed systems react to fluid addition is crucial for analyzing the conditions that might lead to mechanical failure or seal rupture.
