The rubber block is fixed along edge A B, and edge C D is...

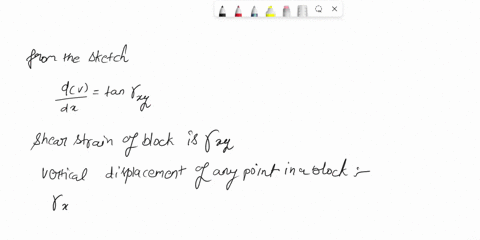

The rubber block is fixed along edge $A B,$ and edge $C D$ is moved so that the vertical displacement of any point in the block is given by $v(x)=\left(v_{0} / b^{3}\right) x^{3}$. Determine the shear strain $\gamma_{x y}$ at points $(b / 2, a / 2)$ and $(b, a)$.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Shear Strain

Shear strain is a measure of the deformation in a material where originally perpendicular lines become non-perpendicular. It quantifies the relative angular distortion between elements of a body when subjected to forces, and is a key parameter in understanding how materials deform under shear loading conditions.

Displacement Field

A displacement field assigns a displacement vector to every point in a body, indicating how each point moves from its initial position under applied loads. In continuum mechanics, the displacement field is central to describing the deformation state of a material and its consequent strains.

Strain-Displacement Relationship

The strain-displacement relationship connects the gradients of the displacement field to the strain components within a material. Specifically, for shear strain in two-dimensional problems, the relationship is often expressed as the derivative of the relevant displacement component with respect to the corresponding coordinate, allowing the computation of shear strain from the displacement field.
