The shaft is supported at A by a journal bearing that exerts...

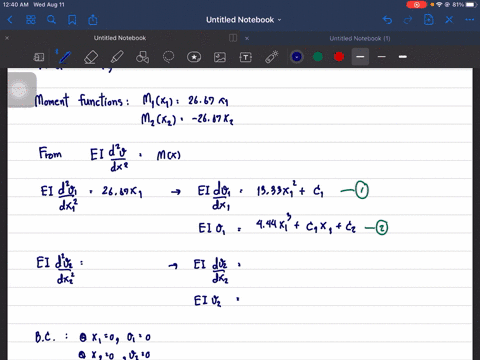

The shaft is supported at $A$ by a journal bearing that exerts only vertical reactions on the shaft, and at $C$ by a thrust bearing that exerts horizontal and vertical reactions on the shaft. Determine the equations of the elastic curve using the coordinates $x_{1}$ and $x_{2}$. $E I$ is constant.

Key Concepts

Differential Equations of Beam Deflection

The bending of beams is governed by differential equations that come from the equilibrium of forces and moments. These equations, typically second-order or fourth-order, describe the relationship between the applied moments, shear forces, and the resulting deflections. Solving these differential equations provides the elastic curve of the beam, with integration constants determined by boundary conditions.

Boundary Conditions

Boundary conditions specify the behavior of the beam at its supports or points of interest. They include information about displacements and slopes at the supports, and are essential in solving the integration constants when deriving the elastic curve. Different support types, like journal or thrust bearings, impose specific conditions that affect the solution of the differential equations.

Elastic Curve

The elastic curve represents the deflected shape of a beam under loading. It is the graph of the displacement function along the length of the beam and is derived from the relationship between bending moments and curvature. Understanding this curve is crucial in predicting how structural elements deform under various load conditions.

Euler-Bernoulli Beam Theory

This fundamental theory in mechanics of materials provides the basis for analyzing beam bending. It relates the bending moment along the beam to its curvature through the equation EI d²y/dx² = M(x), where E is the modulus of elasticity and I is the moment of inertia. The theory is integral to deriving the elastic curve for beams under load, assuming small deflections and material linearity.
