The stress-strain diagram for an aluminum alloy specimen...

Name: Problem 10, Chapter 3: Mechanics of Materials
Uploaded: 2021-12-29T02:54:49-08:00
Duration: 2 min 12 s
Channel: Khoobchandra Agrawal

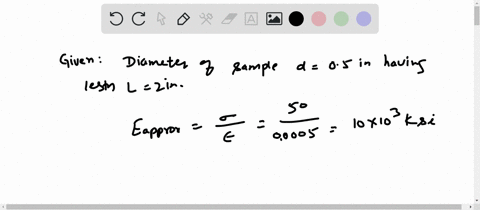

Description: The stress-strain diagram for an aluminum alloy specimen having an original diameter of 0.5 in. and a Gage length of 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, and the ultimate load the specimen will support.

The stress-strain diagram for an aluminum alloy specimen having an original diameter of 0.5 in. and a Gage length of 2 in. is given in the figure. Determine approximately the modulus of elasticity for the material, the load on the specimen that causes yielding, and the ultimate load the specimen will support.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Stress-Strain Diagram

A graphical representation of the relationship between the applied stress and the resulting strain in a material. It is used to identify key regions such as the elastic region, yielding point, and ultimate failure point, providing insight into material behavior under load.

Modulus of Elasticity

A fundamental material property representing stiffness, defined as the slope of the initial, linear portion of the stress-strain curve in the elastic region. It quantifies how much a material deforms elastically when subjected to stress.

Yield Strength

The stress level at which a material transitions from elastic behavior to plastic deformation. It marks the onset of permanent deformation, which is critical for determining the load at which a material begins to yield.

Ultimate Strength

The maximum stress a material can withstand before failure. It is identified as the peak point on the stress-strain curve and is crucial for assessing the load-carrying capacity of a material or structure.

Specimen Geometry

The physical dimensions of the test specimen, such as diameter and gauge length, which are essential for converting the applied load into stress values and for ensuring accurate experimental measurements in material testing.
