The towing pendant A B is subjected to the force of 50 kN exerted by a tugboat. Determine the fo

step 1 Hello everyone in this problem it is given nuclear vessel having a weight. So weight of nuclear

The towing pendant A B is subjected to the force of 50 kN...

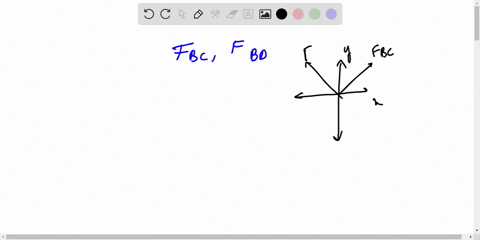

The towing pendant $A B$ is subjected to the force of $50 \mathrm{kN}$ exerted by a tugboat. Determine the force in each of the bridles, $B C$ and $B D$, if the ship is moving forward with constant velocity.

Key Concepts

Static Equilibrium

Static equilibrium is the state in which a system, though subject to several forces, has no net force or moment acting on it. In a system where an object moves with constant velocity, this principle ensures that all forces balance, enabling the calculation of each component force by setting up equilibrium equations.

Force Resolution

Force resolution involves breaking a single force applied at an angle into its component forces along defined axes. This approach is critical in mechanics for analyzing members of a structure, such as bridles or cables, where forces are transmitted at different angles and must be decomposed to understand the equilibrium of the entire system.

Analysis of Towing Systems

In the context of towing systems, the analysis focuses on how the applied force from the tugboat is distributed across different connecting components, like the towing pendant and bridles. This requires integrating principles of static equilibrium and force resolution to determine the individual forces in the structural members that collectively stabilize the motion of the towed object.
