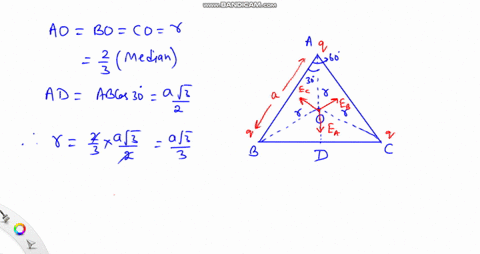

Three identical point charges each of charge $q$ are located at the vertices of an equilateral triangle as in Figure $\mathrm{P} 16.16$ . The distance from the center of the triangle to each vertex is a. (a) Show that the electric field at the center of the triangle is zero. (b) Find a symbolic expression for the electric potential at the center of the triangle. (c) Give a physical explanation of the fact that the electric potential is not zero, yet the electric field is zero at the center.

Three identical point charges each of charge $q$ are located at the vertices of an equilateral triangle as in Figure $\mathrm{P} 16.16$ . The distance from the center of the triangle to each vertex is a. (a) Show that the electric field at the center of the triangle is zero. (b) Find a symbolic expression for the electric
potential at the center of the triangle. (c) Give a physical explanation of the fact that the electric
potential is not zero, yet the electric field is zero at the center.

Key Concepts

Electric Field

The electric field is a vector quantity that represents the force per unit charge at any point in space due to other charges. Its direction and magnitude are determined by vector addition of the individual fields contributed by each point charge, following the inverse square law. In problems involving symmetry, like that of an equilateral triangle, the cancellation of the vector components can lead to a net zero field at certain points, even though each individual charge produces a nonzero field.

Electric Potential

Electric potential is a scalar quantity that represents the work done per unit charge in moving a test charge from a reference point (usually infinity) to a specific point in an electric field. Because it is a scalar, the potential due to multiple charges is simply the algebraic sum of the individual potentials, without regard to direction, which can result in a nonzero value even when the electric field is zero.

Superposition Principle

The superposition principle in electrostatics asserts that the overall electric field or potential at a given point due to multiple charges is the sum of the individual contributions from each charge. This principle is key in calculating net fields and potentials in systems where multiple charges interact, allowing for the analysis of complex configurations by breaking them down into simpler components.

Symmetry in Electrostatics

Symmetry in electrostatics plays a crucial role in simplifying calculations and understanding the behavior of electric fields and potentials. In symmetric configurations, such as an equilateral triangle, the spatial arrangement of charges can cause the directional components of the electric fields to cancel out, leading to a zero net field at the center, while the scalar potentials still add constructively. This demonstrates the difference between the properties of vector and scalar quantities in physics.
