Three negative point charges lie along a line as shown in...

Three negative point charges lie along a line as shown in Fig. E21.47. Find the magnitude and direction of the electric field this combination of charges produces at point $P,$ which lies 6.00 $\mathrm{cm}$ from the $-2.00-\mu \mathrm{C}$ charge measured perpendicular to the line connecting the three charges.

Key Concepts

Coulomb's Law

Coulomb's Law describes the electric force between two point charges. It states that the magnitude of the force, and thus the electric field produced by a point charge, is directly proportional to the product of the charges and inversely proportional to the square of the distance between them. This law serves as the foundation for calculating how individual point charges contribute to the overall electric field at a given location.

Electric Field

The electric field is a vector field that represents the force per unit charge exerted on a small positive test charge placed in the field. Electric fields are produced by electric charges and can vary in magnitude and direction depending on the charge distribution. Understanding the electric field concept is essential in determining how charges influence space around them.

Superposition Principle

The Superposition Principle states that when multiple charges are present, the total electric field at any point is the vector sum of the electric fields produced by each individual charge. This principle is crucial for solving problems involving multiple charges, as it allows for the separate calculation of each field contribution before combining them to find the net electric field.

Vector Addition

Vector addition is the process of combining two or more vectors to determine their cumulative effect. In the context of electric fields, each electric field from a point charge has both a magnitude and a direction. By decomposing these fields into their components and summing them vectorially, one can find the net electric field at a point, accounting for both magnitude and direction.

Geometric Analysis

Geometric analysis involves understanding the spatial arrangement of the charges and the point where the field is being calculated. This includes using the positions, distances, and angles between the charges and the point of interest. Correct interpretation of the geometry is important for applying Coulomb's Law and the superposition principle accurately, as it influences the calculation of distance-dependent fields and the direction of their vectors.

Transcript

00:01 In this question we have three negative charges arranged in this manner.

00:06 Okay, so the middle one is negative to microculum and then the top and bottom is negative 5 microculum.

00:18 Okay, and then the distance between the top and bottom charges is 8 cm.

00:33 Then we are interested to find an electric field at this point, which is 6 cm away.

00:38 From the negative to microculum charge.

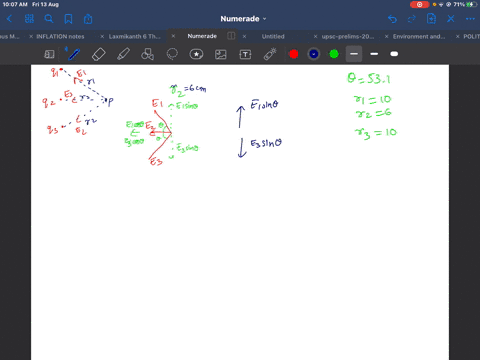

00:44 Okay, so to find the electric field at this point first we need to draw the electric fuel at the point of interest.

01:00 So at the actually electric fuels at this point.

01:07 Okay, one is pointing toward the to the negative charge.

01:12 They are all pointing toward the negative charges.

01:14 So i just want to draw the arrow kind of to scale.

01:25 Okay, so you can see that this is due to the top, the middle, and then the bottom.

01:35 Okay, so we are going to add these three vectors together.

01:43 And then for the top and bottom, electric fields, we can see that the vertical components can start out.

01:48 So we are interested in the horizontal component, okay, and we just need to multiply by two, meaning based on the diagram, okay, the e -net, which is be e -medal plus e -top in the x direction and times 2, okay? because the top and bottom, the vertical component can start out, so we only need the the x components of the top and since they are symmetrical, the two charges are symmetrical about the horizontal line, the middle horizontal line, so i just need to multiply by two...
