Truck suspensions often have "helper springs" that engage at...

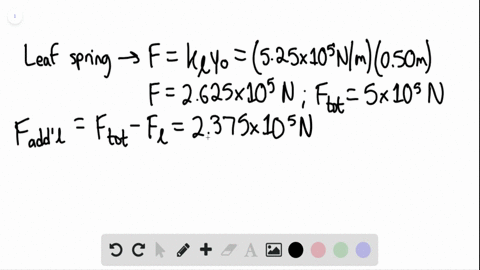

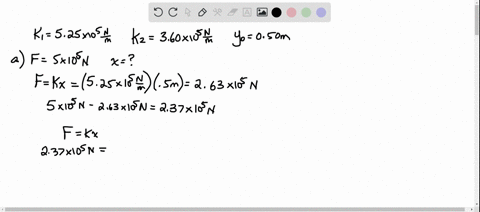

Truck suspensions often have "helper springs" that engage at high loads. One such arrangement is a leaf spring with a helper coil spring mounted on the axle, as in Figure P7.17. The helper spring engages when the main leaf spring is compressed by distance yo, and then helps to support any additional load. Consider a leaf spring constant of $5.25 \times 10^{5} \mathrm{N} / \mathrm{m}$ , helper spring constant of $3.60 \times 10^{5} \mathrm{N} / \mathrm{m},$ and $\mathrm{y}_{0}=0.500 \mathrm{m} .$ (a) What is the compression of the leaf spring for a load of $5.00 \times 10^{5} \mathrm{N}$ ? (b) How much work is done in compressing the springs?

Key Concepts

Hooke's Law

Hooke's Law describes the linear relationship between the force applied to an elastic material and the resulting displacement, typically given as F = kx. This fundamental principle allows us to predict how much a spring will extend or compress under a given load, and is central to solving problems involving spring mechanics.

Spring Constant

The spring constant is a measure of a spring's stiffness, indicating the force required to achieve a unit displacement. It is a critical parameter in determining how a spring responds to loads, as a higher spring constant means the spring will deform less under the same applied force.

Elastic Potential Energy

Elastic potential energy is the energy stored in a deformed elastic material, such as a compressed or extended spring. It is calculated using the expression 1/2 kx^2, where k is the spring constant and x is the displacement. This concept is essential for understanding the work done on springs and the energy stored in mechanical systems.

Multi-stage Spring Systems

Multi-stage spring systems involve different springs that engage sequentially to support loads beyond a certain threshold. This approach, often used in engineering applications like vehicle suspensions, allows for a system that is soft under normal conditions but becomes stiffer under higher loads, thereby providing improved performance and safety.
