Turn on your desk lamp. Pick up the cord, with your thumb...

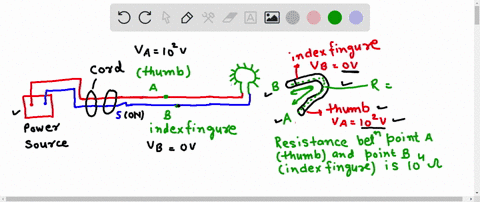

Turn on your desk lamp. Pick up the cord, with your thumb and index finger spanning the width of the cord. (a) Compute an order-of-magnitude estimate for the current in your hand. Assume the conductor inside the lamp cord next to your thumb is at potential $\sim 10^{2} \mathrm{V}$ at a typical instant and the conductor next to your index finger is at ground potential ( 0 V). The resistance of your hand depends strongly on the thickness and the moisture content of the outer layers of your skin. Assume the resistance of your hand between fingertip and thumb tip is $\sim 10^{4} \Omega .$ You may model the cord as having rubber insulation. State the other quantities you measure or estimate and their values. Explain your reasoning. (b) Suppose your body is isolated from any other charges or currents. In order-of-magnitude terms, describe the potential of your thumb where it contacts the cord and the potential of your finger where it touches the cord.

Turn on your desk lamp. Pick up the cord, with your
thumb and index finger spanning the width of the cord.
(a) Compute an order-of-magnitude estimate for the current in your hand. Assume the conductor inside the lamp cord next to your thumb is at potential $\sim 10^{2} \mathrm{V}$ at a typical
instant and the conductor next to your index finger is at
ground potential ( 0 V). The resistance of your hand
depends strongly on the thickness and the moisture content of the outer layers of your skin. Assume the resistance of your hand between fingertip and thumb tip is
$\sim 10^{4} \Omega .$ You may model the cord as having rubber insulation. State the other quantities you measure or estimate
and their values. Explain your reasoning. (b) Suppose
your body is isolated from any other charges or currents.
In order-of-magnitude terms, describe the potential of
your thumb where it contacts the cord and the potential
of your finger where it touches the cord.

Key Concepts

Order-of-Magnitude Estimation

This technique involves making approximations of physical quantities within a power-of-ten accuracy, simplifying complex real-world situations into manageable calculations. It allows one to deduce the scale of an effect—in this case, electrical current—without requiring precise measurements, by approximating values such as voltage, resistance, and dimensions involved in the scenario.

Ohm's Law

Ohm's Law is a fundamental principle in electrical circuits that relates voltage (V), current (I), and resistance (R) through the equation I = V/R. It provides a straightforward way to estimate the current flowing when a potential difference is applied across a resistive medium, exemplifying how voltage differences and resistance determine the current flow in any electrical path.

Electrical Potential and Potential Difference

Electrical potential is the energy per unit charge at a certain point in an electric field, and the potential difference (or voltage) between two points drives the movement of charge carriers. In the context of the problem, the voltage difference between the two conductors (one at approximately 10^2 V and the other at 0 V) is essential for calculating the current through the hand acting as a resistor.

Resistance of the Human Body

The human body resists the flow of electric current, and its resistance can vary significantly depending on factors like moisture, skin thickness, and contact area. In physics problems, assuming a value for the resistance of the hand (around 10^4 ohms in this case) is common for making realistic estimates of current under specific conditions.

Modeling and Assumptions in Electrical Circuits

Simplifying real-world scenarios into basic circuit models involves identifying key parameters such as voltage difference, resistance, and the pathways through which current flows. The process requires making reasonable assumptions about values that might vary widely, such as the voltage on a conductor and the effective resistance between contact points, to allow for a manageable and insightful analysis.
