Two blocks of weights 3.6 N and 7.2 N are connected by a massless string and slide down a 30^∘

Two blocks of weights 3.6 N and 7.2 N are connected by a...

Key Concepts

Tension in a Massless String

In systems with connected bodies, the massless string transmits the force (tension) uniformly between them. Analyzing the forces acting on each object and equating the tension throughout the string helps in solving for unknown quantities such as tension and acceleration in the system.

Relative Motion and Leading Block

The concept of relative motion examines how the behavior of one object in a connected system affects the motion of another, especially when one block is ahead or 'leading.' This analysis is necessary for understanding how changing which block leads can alter the net forces and the resulting accelerations in the system.

Kinetic Friction

Kinetic friction is the resistive force that opposes the motion of sliding objects. Its magnitude is given by the product of the coefficient of kinetic friction and the normal force. Understanding kinetic friction is vital for accurately calculating net forces and subsequent accelerations on surfaces.

Free-Body Diagrams

Free-body diagrams are graphical representations that show all the forces acting on an object. They are crucial in mechanics for visualizing and breaking down forces into components, particularly when analyzing objects on inclined surfaces where gravitational force is resolved along and perpendicular to the plane.

Inclined Plane Analysis

Inclined plane analysis involves decomposing the gravitational force into components parallel and perpendicular to the plane. This process allows for the determination of the normal force and the effective force causing acceleration down the slope, which is essential for solving dynamics problems on ramps.

Newton's Second Law

Newton's Second Law relates the net force acting on an object to its mass and the acceleration produced (F = ma). This principle is essential for setting up and solving the equations of motion for objects on an inclined plane subjected to various forces including gravity, friction, and tension.

Transcript

0:00 All right.

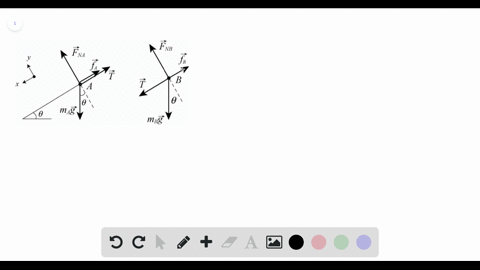

00:02 So to work this out, the first thing we need to do is figure out what all the forces are acting on these two masses.

00:11 And we'll start with the little one.

00:13 We've got our little mass.

00:16 It has, it's going to have a perpendicular part of the weight force and a normal force acting on it.

00:25 So we can do those up here where we have the normal force acting on it.

00:33 It's going to be the upwards direction.

00:36 And then we're going to have m -g -cosine theta.

00:41 And i'm using little m for the small mass and the capital m for the big mass.

00:47 And these will cast each other up, so they'll be zero.

00:51 Another way you can write this is you can recognize that since these two, or equal to zero, we can just set them equal to each other by adding this term to both sides.

01:04 So the normal force is equal to mg cosine data.

01:08 That'll come in handy because in the other direction, we have forces in the parallel direction.

01:15 We're going to have the parallel part of the weight force going down the slope.

01:20 We're going to have a friction force going up the slope, and then we're going to have a tension force going up the slope.

01:27 So we're going to have the little m g cosine theta.

01:35 Oops, that should be sine theta, little mg sine theta, pulling the mass down the slope.

01:45 We've got our mu times the normal force.

01:50 That's how we write the friction force, mu times the normal force.

01:55 So i'm just going to put this there, mu times mg cosine theta, and then minus the tension force and that's going to equal the little mass times its acceleration.

02:11 Now for the larger mass capital m we can do pretty much the same thing right here where we've got its perpendicular weight force and the normal force are going to be equal to each other.

02:32 So we have capital m g cosine theta and then in the parallel direction, we're going to have its weight force and the tension force in this case is down the slope and then its friction force up the slope.

02:49 So it's a little bit reversed.

02:52 So we're going to have capital m, g, sine theta down the slope plus the tension force minus mu, oh, i shouldn't specify.

03:05 This is mu 1, mu 2.

03:08 Capital m, g, cosine, theta.

03:17 And this is like going to be equal to capital m times a.

03:22 So now we've got these two equations and two unknowns.

03:28 We don't know a, we don't know t.

03:31 So we are supposed to find a first.

03:35 So let's go ahead and do that.

03:38 So for part a of this problem, i can get rid of this t by just adding these two equations together.

03:45 Because we have a negative t and a positive t.

03:47 When we add these together, the t's will cancel.
