Two blocks with masses 4.00 kg and 8.00 kg are connected by a string and slide down a 30.0^∘ inc

step 1 for part A. This is the free body diagram. The weights M1G and M2G are acting downwards. The fri

Two blocks with masses 4.00 kg and 8.00 kg are connected by...

Two blocks with masses 4.00 $\mathrm{kg}$ and 8.00 $\mathrm{kg}$ are connected by a string and slide down a $30.0^{\circ}$ inclined plane (Fig. 5.74$) .$ The coefficient of kinetic friction between the $4.00-\mathrm{kg}$ block and the plane is $0.25 ;$ that between the $8.00-\mathrm{kg}$ block and the plane is 0.35 .(a) Calculate the acceleration of each block. (b) Calculate the tension in the string. (c) What happens if the positions of the blocks are reversed, so the $4.00-\mathrm{kg}$ block is above the $8.00-\mathrm{kg}$ block? figure can't copy

Key Concepts

Newton's Second Law

This principle states that the net force acting on an object is equal to the mass of the object multiplied by its acceleration. It is fundamental for analyzing the motion of connected blocks, where the forces due to gravity, friction, and tension must all be considered to solve for acceleration and other dynamic variables.

Kinetic Friction

Kinetic friction is the force that opposes the relative motion of two surfaces sliding against each other. Its magnitude is given by the product of the coefficient of kinetic friction and the normal force. In problems of blocks on an inclined plane, friction must be accounted for along the plane to determine the net force acting on each block.

Inclined Plane Dynamics

When objects move on an inclined plane, gravity’s force is decomposed into components parallel and perpendicular to the plane's surface. The parallel component drives the motion, while the perpendicular component influences the normal force, which in turn affects friction. Understanding this decomposition is essential for analyzing motion down a slope.

Tension in Connecting Strings

In systems where objects are connected by strings, tension is the force transmitted through the string that connects the masses. It plays a crucial role in linking the dynamics of each mass, ensuring that they accelerate together according to the constraints imposed by the connection.

Free-Body Diagrams

Free-body diagrams are visual representations that depict all the forces acting on a single object. In problems involving connected masses on inclines, using free-body diagrams helps in systematically accounting for gravitational, frictional, and tension forces, thereby clarifying the setup and guiding the application of Newton's laws.

Transcript

00:01 For part a.

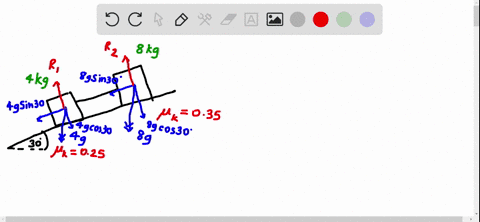

00:02 This is the free body diagram.

00:04 The weights m1g and m2g are acting downwards.

00:07 The frictional forces are acting on the two blocks in the upwards direction.

00:13 The tension between the two blocks is t.

00:21 So now let us find the acceleration of the total system.

00:27 For the system, we can write the net downward force on the system is m1g.

00:36 Sine theta plus m2 j sine theta minus mu one m1 j cost theta minus muo two j cost theta into m2 is equal to total mass of the two blocks which is m one plus m two into the acceleration of the two blocks.

01:25 System.

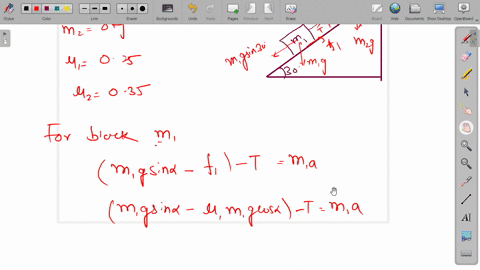

01:27 So substituting the values in it, first we will simplify this expression, g times sine theta within bracket m1 plus m2 minus g times cost theta within bracket m1 plus m2 and this is equal to the net force on the two block system, which is m1 plus m2, and this is equal to the net force on 2 into a so now substituting the values 9 .8 into sign 30 degree here it is theta within bracket 12 minus 9 .8 into cost 30 degree within bracket 0 .25 into 4 plus 0 .3 into 8 it is equal to 12 into acceleration solving this we will get the required acceleration of the two blocks as a equal to 2 .21 meter per second square this is the answer for part a now we have to find the tension force let us take only block m1 then we can write the tension force on the block m1 is equal to m1g sine theta minus mu one m1 m1 g cost theta minus m1a so substituting the values in it 4 into 9 .8 into sine of 30 degree minus 0 .25 into 4 into 4 into 9 .8 cost of 30 degree minus 4 into 2 .21...
