Two charges are located along the x axis: q1=+6.0 μC at x1=+4.0 cm, and q2=+6.0 μC at x2=-4.0

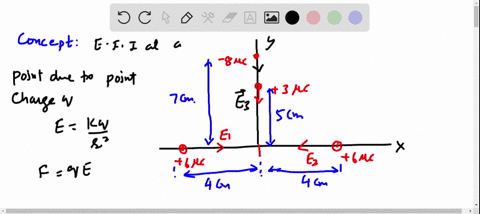

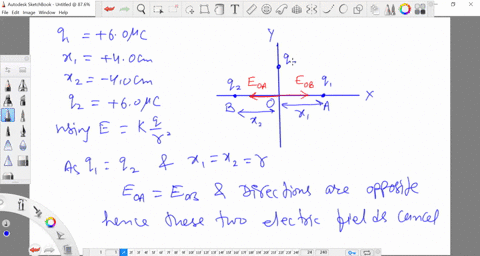

step 1 We have the charges given for xxx and y xxies. So let us draw them. This is E1, E2, this is E3,

Two charges are located along the x axis: q1=+6.0 μC at...

Two charges are located along the $x$ axis: $q_{1}=+6.0 \mu \mathrm{C}$ at $x_{1}=+4.0 \mathrm{~cm},$ and $q_{2}=+6.0 \mu \mathrm{C}$ at $x_{2}=-4.0 \mathrm{~cm} .$ Two other charges are located on the $y$ axis: $q_{3}=+3.0 \mu \mathrm{C}$ at $y_{3}=+5.0 \mathrm{~cm},$ and $q_{4}=-8.0 \mu \mathrm{C}$ at $y_{4}=+7.0 \mathrm{~cm} .$ Find the net electric field (magnitude and direction) at the origin.

Two charges are located along the $x$ axis: $q_{1}=+6.0 \mu \mathrm{C}$ at $x_{1}=+4.0 \mathrm{~cm},$ and $q_{2}=+6.0 \mu \mathrm{C}$ at $x_{2}=-4.0 \mathrm{~cm} .$ Two other charges are located on the $y$ axis:
$q_{3}=+3.0 \mu \mathrm{C}$ at $y_{3}=+5.0 \mathrm{~cm},$ and $q_{4}=-8.0 \mu \mathrm{C}$ at $y_{4}=+7.0 \mathrm{~cm} .$ Find the net electric field (magnitude and direction) at the origin.

Key Concepts

Vector Addition

Since the electric field is a vector, its calculation involves both magnitude and direction. Vector addition is used to combine individual electric fields, taking into account their components along defined axes, to find the net electric field at a given point.

Superposition Principle

The superposition principle states that the overall electric field created by a collection of charges is the vector sum of the electric fields produced by each individual charge. This concept is crucial when dealing with multiple charges since it allows for the independent calculation of each field before summing them.

Decomposition into Components

When handling vector quantities, particularly in problems with components not aligned along a single axis, it is necessary to resolve each vector into its horizontal and vertical components. This process simplifies the addition of vectors and helps to determine the overall magnitude and direction of the net electric field.

Electric Field

The electric field is a vector quantity that represents the force per unit positive charge experienced at a point in space due to other charges. It is defined independently of any test charge and is measured in newtons per coulomb (N/C) or volts per meter (V/m).

Coulomb's Law

Coulomb's law describes the force between two point charges. It states that the magnitude of the force is directly proportional to the product of the charges and inversely proportional to the square of the distance between them. This law is used to determine the electric field produced by a single point charge.
