Two point charges $Q$ and $+q$ (where $q$ is positive) produce the net electric field shown at point $P$ in Figure $17.57 .$ The field points parallel to the line connecting the two charges. (a) What can you conclude about the sign and magnitude of $Q$ ? Explain your reasoning. (b) If the lower charge were negative instead, would it be possible for the field to have the direction shown in the figure? Explain your reasoning.

Key Concepts

Electric Field Direction and Charge Polarity

The direction of the electric field produced by a point charge is determined by the sign of the charge: it points away from a positive charge and toward a negative charge. Understanding this relationship is essential when deducing the possible configurations of charge signs based on the observed direction of the net electric field.

Vector Addition in Electric Fields

Vector addition is used to combine the individual electric field vectors from multiple charges. Since each electric field has both magnitude and direction, the correct resultant field is obtained by summing these vectors according to their directions in space. This process is crucial for interpreting the overall behavior of the electric field when more than one charge is involved.

Coulomb's Law

Coulomb's Law describes the electric field produced by a point charge as being directly proportional to the magnitude of the charge and inversely proportional to the square of the distance from the charge. This law is fundamental in calculating the electric field contributions from individual charges, which is crucial when analyzing problems involving multiple point charges.

Superposition Principle

The superposition principle states that the net electric field produced by multiple charges is the vector sum of the electric fields due to each individual charge. This principle allows one to determine the overall field at a point by adding the contributions from all nearby charges, taking into account both their magnitudes and directions.

Transcript

00:01 In this question we have this set up.

00:02 So we have two point charges, one bq and one plus q at the bottom.

00:09 And then at point p, the electric field at point p, the net electric fuel at point p is pointing upward.

00:16 Okay, we want to, there are two parts in this question.

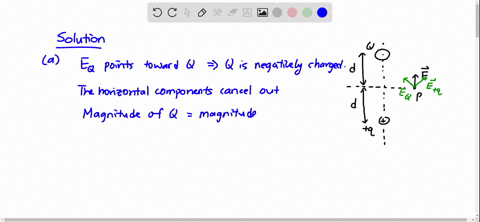

00:20 Part a, want to determine whether, want to determine the main tube and the sign of bq, given this net electric fuel and then part b run through c if we can still get ep pointing upward when the lower charges negatively charged okay so to do this question it is about vector superposition of electric field okay so we can first draw the electric fuel at point p due to the charge plus q, which is pointing in this way.

01:15 And to produce ep, the electric fuel due to the bq will be pointing like this.

01:23 Okay.

01:27 So in part a, eq points toward q.

01:37 So this means that q is negative.

01:41 Negatively charge.

01:47 Okay, and then another thing is point p is equidistant to both charges and there is no horizontal component in ep.

02:23 So this means that the horizontal components of the electric fuel due to big q and the small q can't out okay so it is only possible if this is possible only if q is equal to negative q so big q is negatively charged and the magnitude of the charges equal to the bottom charge.

03:13 So q is equal to negative small q.

03:16 Okay, then in part b, if the lower charge becomes negatively charged, can we still get ep to be pointing up? okay.

03:37 So we'll consider two cases...
