Two resistors, one having a resistance of 900 k Ω, are connected in series to produce a total re

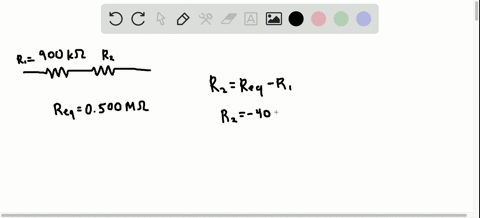

step 1 In this question we have two resistors in which one of a resistors is already given to have 900

Two resistors, one having a resistance of 900 k Ω, are...

Two resistors, one having a resistance of $900 \mathrm{k} \Omega$, are connected in series to produce a total resistance of $0.500 \mathrm{M} \Omega .$ (a) What is the value of the second resistance? (b) What is unreasonable about this result? (c) Which assumptions are unreasonable or inconsistent?

Key Concepts

Series Resistance

In series circuits, the total resistance is the sum of the individual resistances. This concept allows us to calculate the unknown resistor value by subtracting the known resistor(s) from the total resistance. It is fundamental in circuit analysis for designing and understanding how resistors contribute to the overall resistance in a circuit.

Unit Conversion

Electrical problems often require careful unit conversion, such as converting between kilohms and megohms. Incorrect handling of units can lead to misinterpretation of the values involved in calculations, which is especially important in ensuring that the numerical relationships in the circuit calculations are consistent and accurate.

Physical Interpretation of Negative Resistance

A calculated negative resistance indicates a non-physical or unrealistic result, since passive components like resistors cannot have negative resistance. This concept highlights the importance of checking the physical plausibility of computed values in circuit analysis, as negative resistance typically points to an error in the assumptions or a misinterpretation of the given parameters.

Modeling Assumptions in Circuit Analysis

Circuit analysis often makes idealized assumptions about components and measurements. When a result such as a negative resistance is obtained, it suggests that one or more assumptions—such as the validity of the component values, measurement accuracy, or the ideal behavior of resistors—may be unreasonable or inconsistent with physical reality. This underlines the importance of critically examining the assumptions underlying the model to ensure they are applicable to the circuit being analyzed.
