Two thin rods of length L are rotating with the same angular speed ω(in rad / s ) about axes tha

step 1 Everyone this is the problem based on kinetic energy of rotation for rod a kinetic energy of rot

Two thin rods of length L are rotating with the same angular...

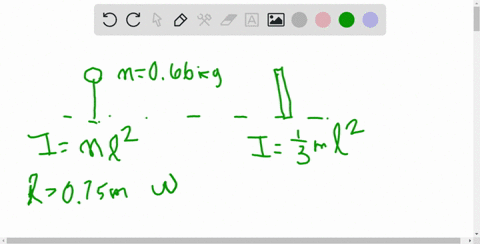

Two thin rods of length $L$ are rotating with the same angular speed $\omega$ (in $\mathrm{rad} / \mathrm{s}$ ) about axes that pass perpendicularly through one end. Rod $\mathrm{A}$ is massless but has a particle of mass $0.66 \mathrm{kg}$ attached to its free end. Rod B has a mass of 0.66 kg, which is distributed uniformly along its length. The length of each rod is $0.75 \mathrm{m},$ and the angular speed is $4.2 \mathrm{rad} / \mathrm{s}$. Find the kinetic energies of rod $A$ with its attached particle and of rod $B$.

Key Concepts

Rotational Kinetic Energy

This concept refers to the energy possessed by a rotating object due to its angular motion. It is given by the formula KE = ½ I ?², where I is the moment of inertia and ? is the angular speed. This formula is central to problems involving rotating objects and allows one to calculate energy from the distribution of mass relative to the axis of rotation.

Moment of Inertia

The moment of inertia is a measure of an object’s resistance to changes in its rotational motion. It depends not only on the total mass but also on how that mass is distributed with respect to the axis of rotation. For example, a point mass located at the end of a massless rod has a moment of inertia of mL², while a uniformly distributed mass along a rod rotating about one end has a moment of inertia of (1/3)mL².

Mass Distribution

Mass distribution pertains to how the mass of an object is spread out in space. In rotational dynamics, the distribution of mass greatly influences the moment of inertia and thus the rotational kinetic energy. A point mass and a distributed mass with the same total mass will have different moments of inertia, leading to different energy characteristics when rotating at the same angular speed.

Angular Speed

Angular speed is the rate at which an object rotates and is usually measured in radians per second. It is a critical parameter in calculating the rotational kinetic energy since the energy scales with the square of the angular speed, making even small differences in ? significant in energy calculations.
