Use a rough diagram to compare the structures of a protein α-helix and an antiparallel β-sheet.

Use a rough diagram to compare the structures of a protein...

Key Concepts

Simplified Backbone Representation

A simplified backbone representation in diagrams involves displaying only the main chain atoms, omitting side chains. This focus on the backbone atoms, such as the N, C?, and C atoms, allows for clearer visualization of the overall folds and hydrogen bonding interactions that define the alpha-helix and antiparallel beta-sheet structures.

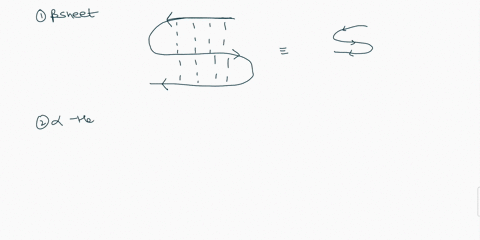

Antiparallel Beta-Sheet

An antiparallel beta-sheet is a secondary structure where beta-strands align in opposite directions. The strands are connected by hydrogen bonds between the C=O group of one strand and the N-H group of the adjacent strand. This arrangement allows for an optimal hydrogen bonding network, contributing to the sheet’s overall stability, and results in a more extended, pleated sheet structure.

Hydrogen Bonding Patterns

Hydrogen bonding patterns are essential to stabilizing both alpha-helices and beta-sheets. In alpha-helices, the hydrogen bonds typically occur between residues at positions n and n+4, whereas in beta-sheets, hydrogen bonds form between adjacent strands. These patterns dictate the specific arrangements and overall stability of the secondary structures.

Protein Secondary Structure

Protein secondary structure refers to the local, repetitive conformations of the polypeptide backbone, primarily including the alpha-helix and beta-sheet. It is stabilized by regular hydrogen bonding between backbone atoms, and understanding these elements is crucial for deciphering the overall three-dimensional structure of proteins.

Alpha-Helix

The alpha-helix is a common secondary structure in proteins, characterized by a right-handed coiled or spiral formation. In an alpha-helix, each backbone N-H group forms a hydrogen bond with the C=O group of the amino acid four residues earlier, creating a tightly packed, cylindrically symmetric structure, which is crucial for the protein’s overall stability and function.

Transcript

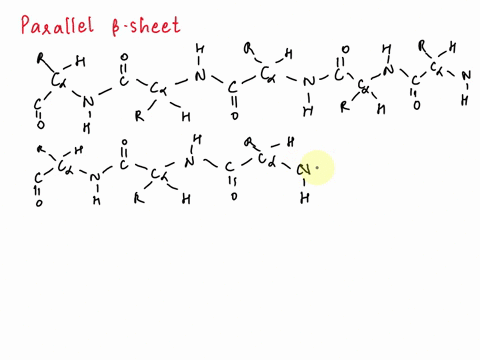

00:02 Consider two molecules of tetrapetite composed of only alenine residues, draw the hydrogen bonding interactions that result when these two peptides adopt a parallel beta -pleted sheet arrangement.

00:25 Answer the same question for the anti -parallel beta -predate sheet arrangement.

00:33 So here we have to see two molecules of the same question for the anti -parallel beta -predate sheet arrangement.

00:37 Tetrapeptide tetrapeptide four amino acids composed of only elenine molecule composed of only alenine molecule so here we have one tetrapetide we can make it alenine tetrapetite so here it should be o h group o h and here it should be c h 3 h and this should be again ch3 and h.

01:16 When it is aline, r group is ch3.

01:19 This is also ch3 and h.

01:25 And this one is again ch3 and h.

01:29 And this should be hydrogen.

01:32 This is n terminal.

01:34 This is c terminal.

01:36 This is again h.

01:38 And this should be ch3, h.

01:42 This is ch3 and this one is again ch3 to make it aline r group should be h otherwise the basic framework will remain same so here it should be ch3 and h and this should be oh so these are two trends two tetrapeptide chains and we have to arrange them parallel to make the beta pleated sheet.

02:19 In beta pleated sheet arrangement, peptide chains line up side by side.

02:30 Some characteristics are common that we can see here.

02:35 First one is co and nh bonds lie in the plane of the sheet.

02:41 All the co and nh bonds are lying in the plane of the sheets.

02:45 Second is hydrogen bonding that we have to make.

02:49 And third is our groups are always oriented above and below the brain.

02:56 So this methyl group will be above or below the plane, whereas the c -o -n -h and hydrogen bonding and all other groups will remain in the same plane.

03:08 So for hydrogen bonding, it should be in between nh and coo of the other chain.

03:14 So it should be this one...
