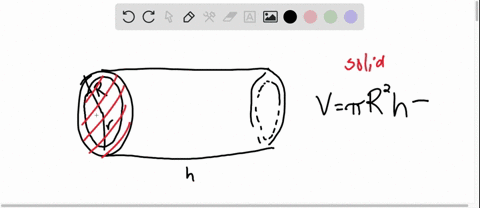

Volume of Concrete A culvert is constructed out of large cylindrical shells cast in concrete, as shown in the figure. Using the formula for the volume of a cylinder given on the inside front cover of this book, explain why the volume of the cylindrical shell is $$V=\pi R^{2} h-\pi r^{2} h$$ Factor to show that $V=2 \pi \cdot$ average radius $\cdot$ height $\cdot$ thickness Use the unrolled diagram to explain why this makes sense geometrically.

Volume of Concrete A culvert is constructed out of large
cylindrical shells cast in concrete, as shown in the figure.
Using the formula for the volume of a cylinder given on the
inside front cover of this book, explain why the volume of
the cylindrical shell is
$$V=\pi R^{2} h-\pi r^{2} h$$
Factor to show that
$V=2 \pi \cdot$ average radius $\cdot$ height $\cdot$ thickness
Use the unrolled diagram to explain why this makes sense
geometrically.

Key Concepts

Volume of a Cylinder

This concept refers to the formula V = ?r²h, which calculates the space occupied by a solid right circular cylinder. It is a foundational formula in geometry and is used to determine the volume of any cylindrical shape by considering the area of its circular base and its height.

Cylindrical Shell

A cylindrical shell is a hollow cylinder formed by removing an inner cylinder from an outer cylinder. The volume of the shell is derived by subtracting the volume of the inner cylinder from the volume of the outer cylinder. This idea is critical when dealing with structures like pipes, tunnels, or culverts that have a hollow interior.

Difference of Volumes

In calculating the volume of a cylindrical shell, the volume of the inner cylinder is subtracted from that of the outer cylinder. Mathematically, this is expressed as V = ?R²h - ?r²h. This emphasizes the idea of removing a portion of a solid to arrive at the volume of a hollow or annular shape.

Factoring the Volume Expression

The expression V = ?R²h - ?r²h can be factored to illustrate the dependence on the average radius, height, and thickness. Factoring out common terms leads to the formula being expressed as 2?(average radius)(height)(thickness), which shows how the volume scales with these dimensions and provides insight into the structural properties of the shell.

Geometric Interpretation Using Unrolled Diagram

An unrolled diagram represents the curved surface of the cylindrical shell as a rectangular strip. In this context, the length of the rectangle corresponds to the circumference of the circular shell, while the width represents the thickness. This geometric interpretation reinforces the algebraic manipulation, showing that the volume can be thought of as the product of the area of the rectangle (derived from the average circumference times the thickness) and the height of the cylinder.
