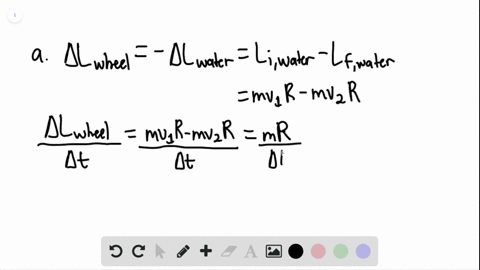

Water drives a waterwheel (or turbine) of radius $R=3.0 \mathrm{~m}$ as shown in Fig. $11-47 .$ The water enters at a speed $v_{1}=7.0 \mathrm{~m} / \mathrm{s}$ and exits from the waterwheel at a speed $v_{2}=3.8 \mathrm{~m} / \mathrm{s} . \quad(a)$ If $85 \mathrm{~kg}$ of water passes through per second, what is the rate at which the water delivers angular momentum to the waterwheel? $(b)$ What is the torque the water applies to the waterwheel? $(c)$ If the water causes the waterwheel to make one revolution every $5.5 \mathrm{~s}$, how much power is delivered to the wheel?

Key Concepts

Angular Velocity

Angular velocity describes how fast an object rotates or revolves relative to another point, typically expressed in radians per second. It provides a link between the rotational motion of an object and its linear speed at points along its radius, which is essential in analyses involving rotational kinematics and dynamics.

Mass Flow Rate

Mass flow rate is a measure of the quantity of mass that passes through a given surface or control volume per unit time. It plays a crucial role in fluid dynamics and enables the calculation of momentum and energy fluxes in systems involving continuous mass movement.

Angular Momentum

Angular momentum is the rotational counterpart of linear momentum and quantifies the amount of rotation an object has, taking into account its mass, shape, and rotational speed. It is defined as the cross product of an object's position vector and its linear momentum, and is conserved in isolated systems, making it central to the analysis of rotational dynamics.

Torque

Torque is the measure of the force that can cause an object to rotate about an axis. It is the rotational analogue of force and is mathematically defined as the rate of change of angular momentum. Torque is fundamental in determining how forces lead to rotational acceleration in mechanical systems.

Power in Rotational Systems

Power in rotational systems is the rate at which energy is transferred or work is done by a rotating object. It is closely related to both torque and angular velocity, with power calculated as their product, providing insight into the efficiency and performance of mechanical systems involving rotation.
