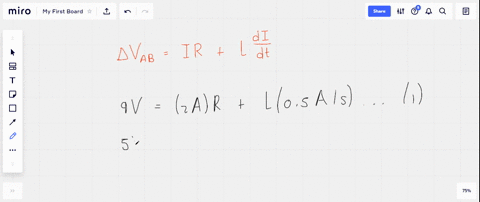

When the current in the portion of the circuit shown in Figure P32.59 is 2.00 A and increases at a rate of 0.500 $\mathrm{A} / \mathrm{s}$ , the measured voltage is $\Delta V_{a b}=9.00 \mathrm{V}$ . When the current is 2.00 A and decreases at the rate of $0.500 \mathrm{A} / \mathrm{s},$ the measured voltage is $\Delta V_{a b}=5.00 \mathrm{V} .$ Calculate the values of (a) $L$ and (b) $R$

When the current in the portion of the circuit shown in Figure P32.59 is 2.00 A and increases at a rate of
0.500 $\mathrm{A} / \mathrm{s}$ , the measured voltage is $\Delta V_{a b}=9.00 \mathrm{V}$ . When the current is 2.00 A and decreases at the rate of $0.500 \mathrm{A} / \mathrm{s},$ the measured voltage is $\Delta V_{a b}=5.00 \mathrm{V} .$ Calculate the values of (a) $L$ and (b) $R$

Key Concepts

Kirchhoff’s Voltage Law (KVL)

Kirchhoff’s Voltage Law states that the sum of the electromotive forces and the voltage drops around any closed loop in a circuit must equal zero. This principle is key in analyzing circuits that contain multiple elements such as resistors and inductors, as it allows us to set up equations that incorporate both the resistive voltage drops and the voltage induced by changes in current due to inductance.

Self-Inductance

Self-inductance is a property of an electrical circuit, especially coils, that quantifies its ability to induce an electromotive force (emf) in response to a change in current through it. This induced emf arises because a changing current produces a changing magnetic field, which in turn induces a voltage that opposes the change in current, as described by Lenz's Law. It is represented mathematically by the term L(dI/dt) where L is the inductance and dI/dt is the rate of change of current.

Resistance

Resistance is a measure of an element's opposition to the flow of electric current, resulting in an energy loss in the form of heat. In circuits, the voltage drop across a resistor is directly proportional to the current flowing through it, following Ohm’s Law, which is expressed as V = IR. This concept is critical in analyzing the steady-state and transient responses of circuits with both resistive and inductive elements.
