Would it be better to use octahedral Ni^2+ complexes or octahedral Cr^2+ complexes to determine

Would it be better to use octahedral Ni^2+ complexes or...

Key Concepts

Octahedral Coordination Geometry

This concept refers to the spatial arrangement of six ligands surrounding a central metal ion, resulting in a specific pattern of d-orbital splitting. In an octahedral field, the five d-orbitals split into two energy levels (t2g and eg), whose separation is critical for determining the magnetic and spectroscopic properties of the complex.

Ligand Field Theory

Ligand field theory explains how the approach of ligands alters the energy of a metal ion's d-orbitals. The strength of the interaction, quantified by the ligand field splitting energy (?), helps predict whether a complex will exhibit a high-spin or low-spin electron configuration, thereby influencing its magnetic behavior.

High-Spin and Low-Spin Configurations

High-spin and low-spin configurations describe different arrangements of electrons in the metal's d-orbitals depending on the magnitude of the crystal field splitting compared to electron pairing energies. Strong-field ligands can force electrons to pair up in the lower energy orbitals (low-spin), whereas weak-field ligands favor keeping electrons unpaired in accordance with Hund's rule (high-spin), affecting the magnetic moments measured.

Spectrochemical Series

The spectrochemical series ranks ligands based on the magnitude of the crystal field splitting energy they produce. This series is essential for predicting whether a given ligand will be strong-field or weak-field, which in turn influences whether the complex will adopt a low-spin or high-spin electron configuration.

Magnetic Measurements of Unpaired Electrons

Magnetic measurements, such as those obtained from magnetic susceptibility or electron paramagnetic resonance, provide direct information about the number of unpaired electrons in a complex. This data is a key diagnostic tool for assessing whether a ligand behaves as a strong-field or a weak-field ligand in a metal complex.

Spectroscopic Determination of Ligand Field Strength

Spectroscopic techniques, including UV-Vis absorption spectroscopy, can be used to measure the transitions corresponding to d-orbital splitting. By analyzing these transitions, one can determine the crystal field splitting energy (?), thereby inferring the relative ligand field strength and comparing different ligands.

Choice of Metal Ion in Ligand Field Evaluation

The selection of an appropriate metal ion is crucial when studying ligand field effects. Depending on the d-electron count and the sensitivity of the metal ion's electron configuration to changes in ligand field strength, some ions will exhibit more pronounced differences in their magnetic and spectroscopic properties upon coordination with various ligands. This careful selection can optimize the ability to discriminate between strong-field and weak-field behavior.

Transcript

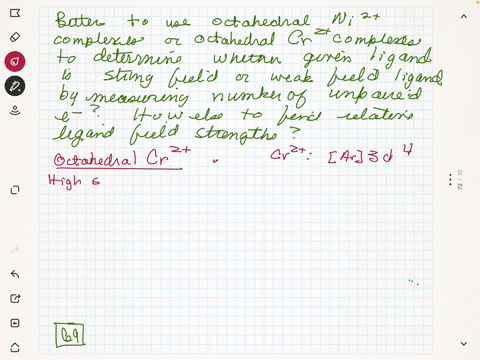

00:01 This problem tests our knowledge of crystal field splitting, but this also introduces us to some very important concepts, such as determining unpaired electrons based on crystal field splitting, and also ligand strength, and if we are in a high or very strong or weak field ligand.

00:21 The way we're going to do that is compare the two crystal field splitting diagrams for chromium.

00:28 We have chromium 2 plus, and we should do.

00:31 Determine that chromium 2 plus is better to determine ligand strength by measuring the number of unpaired electrons.

00:40 We should know that chromium 2 plus has a 3d4 electron configuration.

00:46 So that means that we'll have two different crystal field splitting diagrams because we can orient these electrons two different ways.

00:55 The first ways will look like this.

00:58 We'll have, remember this axis is energy, we'll have our crystal field splitting.

01:03 We will have our four electrons in our t2g orbital and an empty eg orbital.

01:10 But notice here how we have two unpaired electrons in our t2g orbital.

01:15 We'll have a two unpaired electrons, which means that this is paramagnetic.

01:22 And this also makes sense that we are in a strong field ligand.

01:27 And because of this, we will have a large delta octahedral.

01:31 For this crystal field splitting diagram...
