00:01

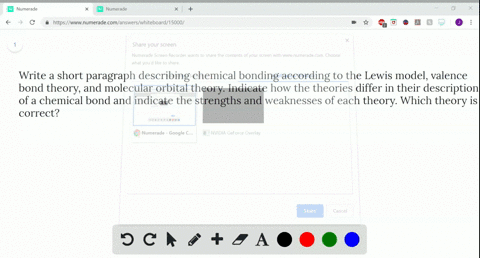

All right, in this question, we're talking about three different ways to visualize and interpret bonds.
00:06
And so these are the lewis model, the valence bond theory, and the molecular orbital theory.
00:10
So let's start with the lewis model.
00:13
This basically says that a bond is when two atoms share electrons.
00:19
And this is really easy to visualize and learn with, and that's one of the plus sides.
00:26
And it's also e minus is just my way to write electrons.
00:30
It's really simple and quick.
00:32
But it's really easy to visualize and learn with.
00:34
And for example, we're just going to do like h2 drawing that.
00:37
It's like got two hydrogen atoms.
00:40
They both have one electron.
00:41
Well, when they bond under the lewis model, they basically put their electrons in the middle, and there we go.
00:48
And this model is really good for learning.
00:51
And it also makes a lot of sense and explains a lot of the bonding patterns that we see.
00:56
So it's a really good way to get started.
00:58
But of course, like with nature, there's always stuff that we can't explain.
01:02

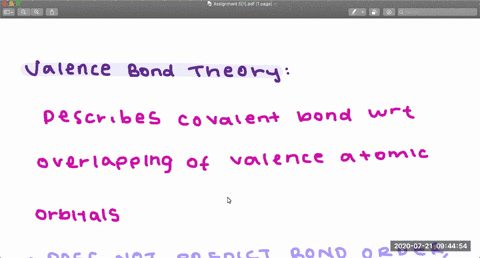

And so we have to get a little bit deeper into the valence bond theory, which is when a bond is formed by the overlapping of orbitals.
01:12
And this is orbitals are like where the electrons tend to be.
01:16
It's like places of electron density.
01:19
And so in this case, if we wanted to draw our hydrogen bond, we've got our h and it's got an s orbital that looks like a sphere.
01:26
Another h with an s orbital that looks like a sphere.
01:30
And when they come together, it'll be a little bit closer.
01:32
And they're spheres, sorry, this is a little bit more realistic.
01:36
But their orbitals overlap like a venn diagram...
