You have a triangular prism made of glass of refractive...

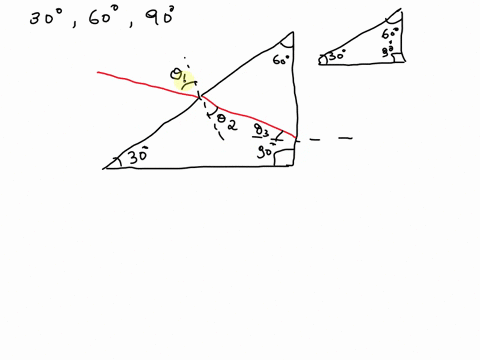

You have a triangular prism made of glass of refractive index 1.60, with angles of $30^{\circ}-90^{\circ}-60^{\circ}.$ The short side is oriented vertically. A horizontal ray hits the middle of the slanted side of the prism. Draw the path of a ray as it passes into and through the prism. Determine all angles for its trip through the prism.

Key Concepts

Snell's Law

Snell's Law explains the relationship between the angles of incidence and refraction when light passes from one medium to another with a different refractive index, expressed as n? sin(??) = n? sin(??). This principle is fundamental in determining how the light ray bends at each interface of the prism.

Index of Refraction

The index of refraction is a measure of how much a material slows down light relative to its speed in a vacuum. It is a crucial factor in calculating the degree of bending of light rays when entering or exiting a medium, as depicted by Snell's Law.

Prism Geometry

Understanding the geometry of a prism, including its face angles and overall shape, is essential in predicting the path of light inside the prism. The specific angles between the sides determine the normals at the interfaces, which in turn affect the incidence and refraction angles for the light ray.

Geometrical Optics

Geometrical optics involves the approximation of light as rays that travel in straight lines and change direction at interfaces. This framework is used to analyze and design optical systems, such as the ray path through a prism, by considering principles like reflection and refraction.

Ray Diagram Construction

The construction of ray diagrams provides a visual representation of how light rays interact with optical elements like prisms. By diagramming the incident, refracted, and emergent rays, one can systematically determine the angles at each interface, making it a powerful tool in solving optical problems.
