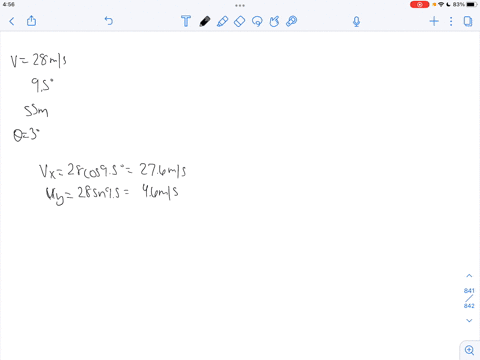

You're a consulting engineer specializing in athletic facilities, and you've been asked to help design the Olympic ski jump pictured in Fig. $3.27 .$ Skiers will leave the jump at $28 \mathrm{m} / \mathrm{s}$ and $9.5^{\circ}$ below the horizontal, and land 55 m horizontally from the end of the jump. Your job is to specify the slope of the ground so skiers' trajectories make an angle of only $3.0^{\circ}$ with the ground on landing, ensuring their safety. What slope do you specify? (FIGURE CAN'T COPY)

Key Concepts

Projectile Motion

Projectile motion describes the path of an object that is launched into the air and moves under the influence of gravity alone. This fundamental concept in physics breaks the motion into independent horizontal and vertical components, allowing for the use of kinematic equations to predict the trajectory, range, and time of flight.

Kinematic Equations

Kinematic equations are used to analyze the motion of projectiles by relating displacement, velocity, acceleration, and time. These equations allow one to calculate various aspects of the projectile's path including the horizontal distance traveled and the vertical displacement, which are essential for determining impact conditions.

Velocity Decomposition

Velocity decomposition involves breaking the initial velocity into horizontal and vertical components using trigonometric functions. This step is crucial for analyzing projectile motion, as it treats the horizontal motion as uniform and the vertical motion as uniformly accelerated due to gravity.

Inclined Plane Analysis

Inclined plane analysis involves understanding the interaction between a projectile and a sloped surface. When a projectile lands on an incline, the effective impact angle must be computed relative to the slope rather than the horizontal, ensuring that the landing meets safety or design requirements.

Trajectory Impact Conditions

Trajectory impact conditions refer to the criteria required at the point where the projectile lands. This involves aligning the projectile’s velocity vector with the desired angle relative to the inclined surface. In design problems, such as ski jumps, specifying these conditions is key to ensuring a safe landing angle.
