Question 8
Source: Test 1 2015 Question 3

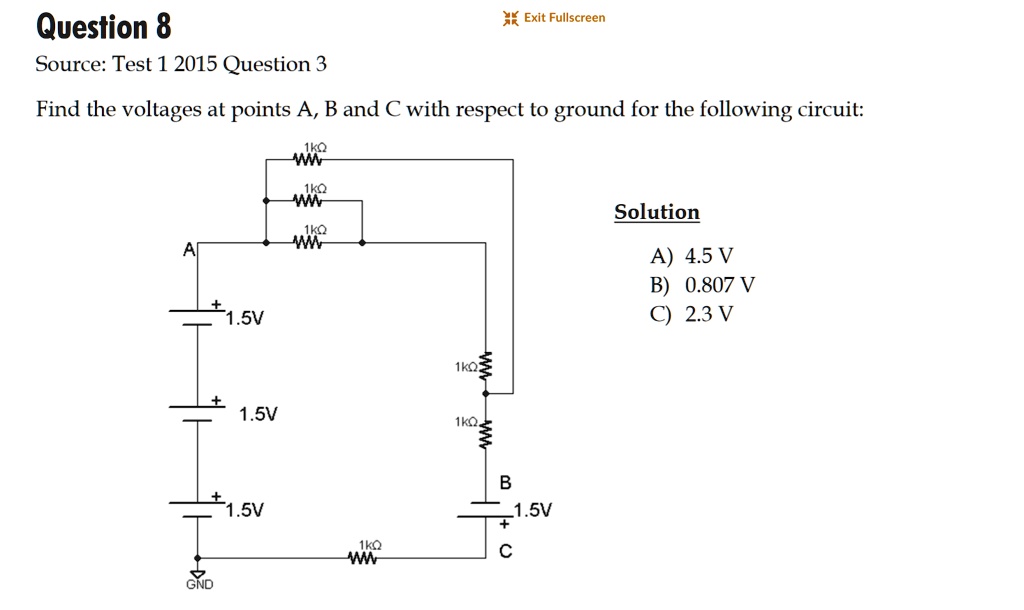

Find the voltages at points A, B and C with respect to ground for the following circuit:
1k$\Omega$
1k$\Omega$
1k$\Omega$
A
+ 1.5V
+ 1.5V
+ 1.5V
GND
1k$\Omega$
Solution
A) 4.5 V
B) 0.807 V
C) 2.3 V
1k$\Omega$
1k$\Omega$
B
+ 1.5V
C
