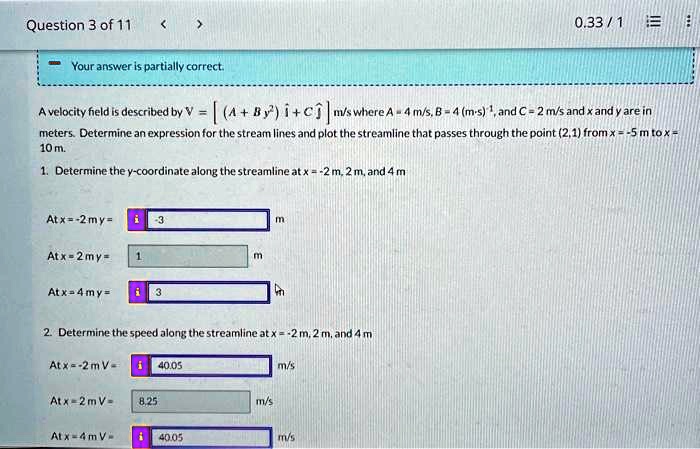

Question 3 of 11
Your answer is partially correct.
A velocity field is described by $V = [(A + By^2)\hat{i} + C\hat{j}]$ m/s where A = 4 m/s, B = 4 (m\text{-}s)$^{-1}$, and C = 2 m/s and x and y are in
meters. Determine an expression for the stream lines and plot the streamline that passes through the point (2,1) from x = -5 m to x = 10 m.
1. Determine the y-coordinate along the streamline at x = -2 m, 2 m, and 4 m
At x = -2 m y = -3 m
At x = 2 m y = 1 m
At x = 4 m y = 3 m
2. Determine the speed along the streamline at x = -2 m, 2 m, and 4 m
At x = -2 m V = 40.05 m/s
At x = 2 m V = 8.25 m/s
At x = 4 m V = 40.05 m/s
