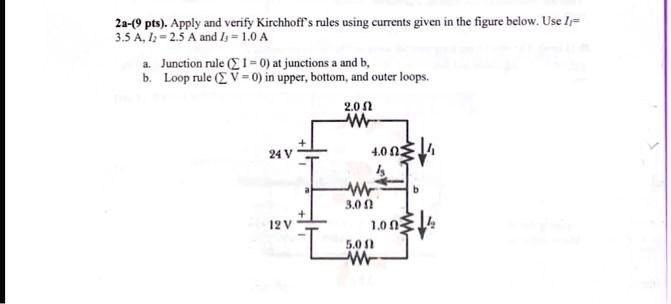

2a-9 pts. Apply and verify Kirchhoff's rules using currents given in the figure below. Use I_r = 3.5A, I_s = 2.5A, and I_t = 1.0A.
a. Junction rule: ΣI = 0 at junctions a and b
b. Loop rule: ΣV = 0 in upper, bottom, and outer loops
U07 W
4.00
1
3.0
1.00 5.0
