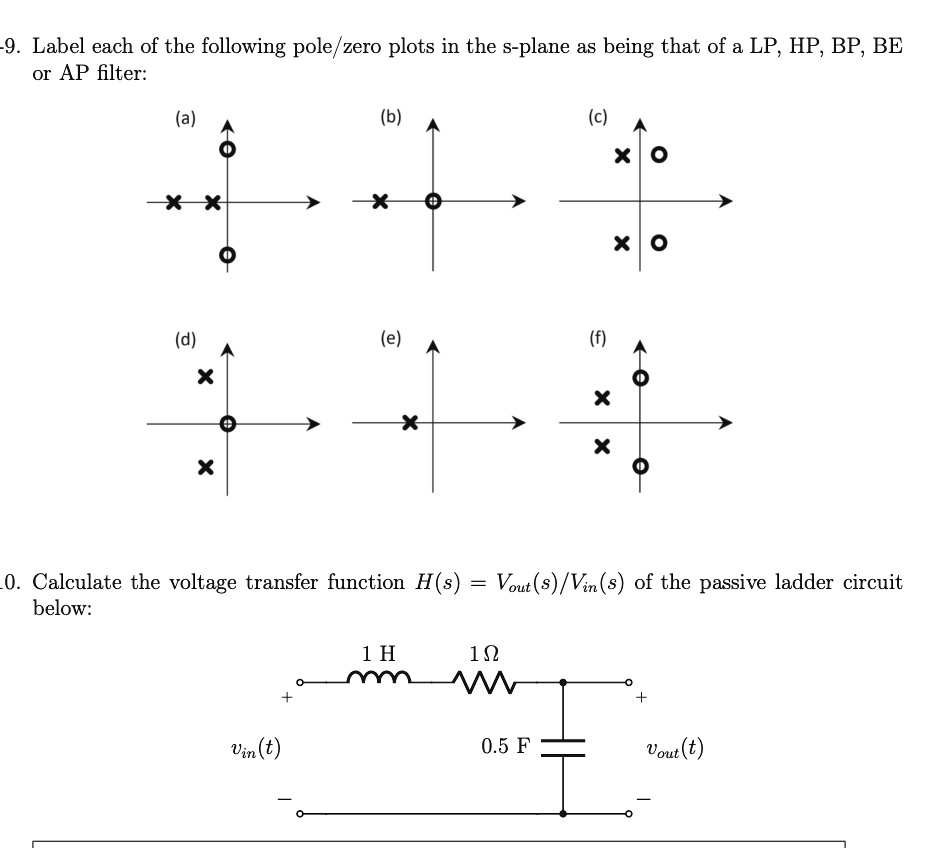

-9. Label each of the following pole/zero plots in the s-plane as being that of a LP, HP, BP, BE
or AP filter:
(a)
(b)
(c)
(d)
(e)
(f)
-0. Calculate the voltage transfer function $H(s) = \frac{V_{out}(s)}{V_{in}(s)}$ of the passive ladder circuit
below:
1 H
1?
+
$V_{in}(t)$
0.5 F
+
$V_{out}(t)$
