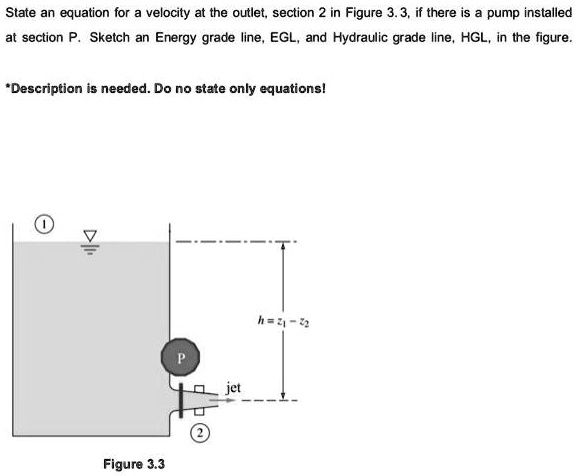

State an equation for a velocity at the outlet, section 2 in Figure 3.3, if there is a pump installed at section P. Sketch an Energy grade line, EGL, and Hydraulic grade line, HGL, in the figure.
*Description is needed. Do no state only equations!
1
?
P
jet
2
Figure 3.3
h=z1-z2
