EE 412 - Spring 2019
HW (5%)

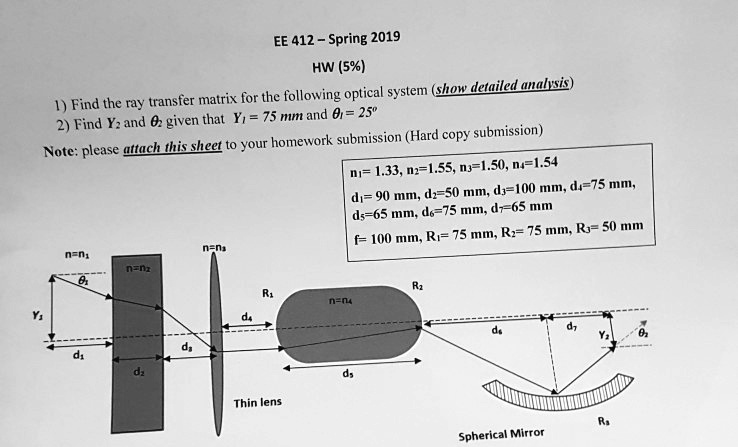

1) Find the ray transfer matrix for the following optical system (show detailed analysis)
2) Find $Y_2$ and $\theta_2$ given that $Y_1 = 75$ mm and $\theta_1 = 25^\circ$
Note: please attach this sheet to your homework submission (Hard copy submission)
$n_1 = 1.33$, $n_2 = 1.55$, $n_3 = 1.50$, $n_4 = 1.54$
$d_1 = 90$ mm, $d_2 = 50$ mm, $d_3 = 100$ mm, $d_4 = 75$ mm,
$d_5 = 65$ mm, $d_6 = 75$ mm, $d_7 = 65$ mm
$f = 100$ mm, $R_1 = 75$ mm, $R_2 = 75$ mm, $R_3 = 50$ mm
