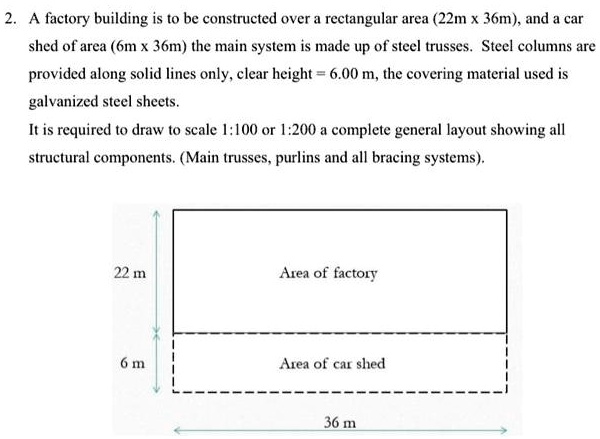

A factory building is to be constructed over a rectangular area (22m x 36m), and a car shed of area (6m x 36m) the main system is made up of steel trusses. Steel columns are provided along solid lines only, clear height = 6.00 m, the covering material used is galvanized steel sheets.
It is required to draw to scale 1:100 or 1:200 a complete general layout showing all structural components. (Main trusses, purlins and all bracing systems).
22 m
Area of factory
6 m
Area of car shed
36 m
