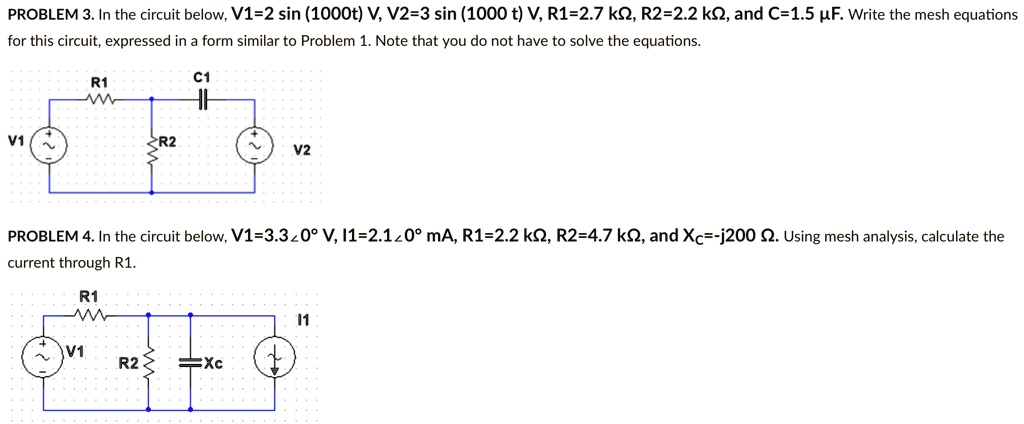

PROBLEM 3. In the circuit below, V1=2 sin (1000t) V, V2=3 sin (1000 t) V, R1=2.7 ??, R2=2.2 ??, and C=1.5 µF. Write the mesh equations for this circuit, expressed in a form similar to Problem 1. Note that you do not have to solve the equations.
V1
R1
C1
?
R2
V2
PROBLEM 4. In the circuit below, V1=3.3\(\angle\)0° V, I1=2.1\(\angle\)0° mA, R1=2.2 ??, R2=4.7 k?, and Xc=-j200 ?. Using mesh analysis, calculate the current through R1.
R1
V1
R2Xc
