a)

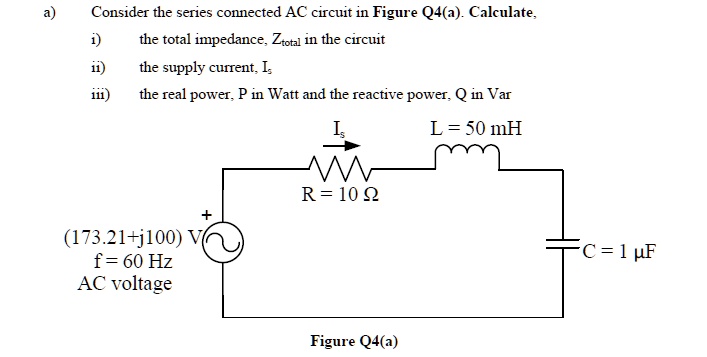

Consider the series connected AC circuit in Figure Q4(a). Calculate,
i) the total impedance, $Z_{total}$ in the circuit
ii) the supply current, $I_s$
iii) the real power, P in Watt and the reactive power, Q in Var
$(173.21 + j100) V$
f = 60 Hz
AC voltage
$I_s$
$R = 10 \Omega$
Figure Q4(a)
$L = 50 mH$
$C = 1 \mu F$
