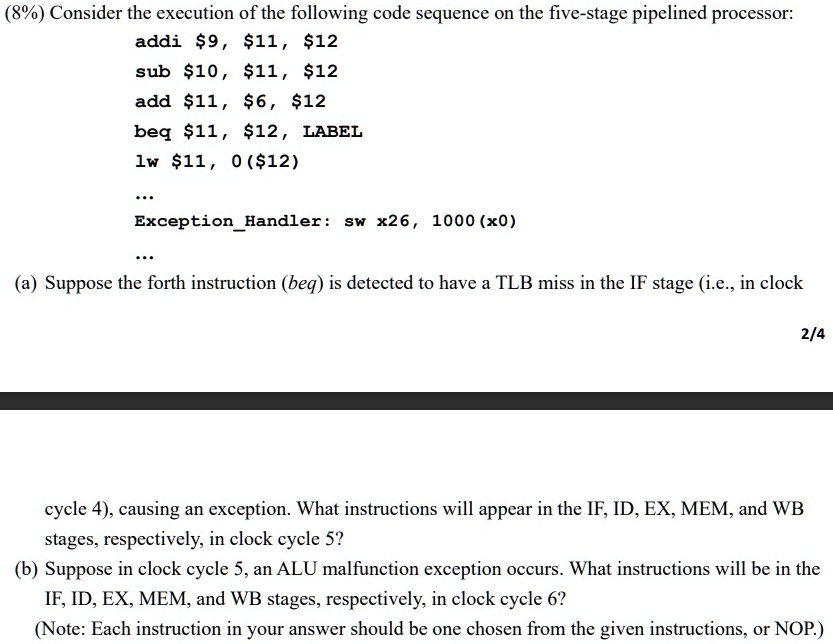

(8%) Consider the execution of the following code sequence on the five-stage pipelined processor:
addi $9, $11, $12
sub $10, $11, $12
add $11, $6, $12
beq $11, $12, LABEL
lw $11, 0 ($12)
...
Exception _Handler: sw x26, 1000 (x0)
...
(a) Suppose the forth instruction (beq) is detected to have a TLB miss in the IF stage (i.e., in clock
2/4
cycle 4), causing an exception. What instructions will appear in the IF, ID, EX, MEM, and WB
stages, respectively, in clock cycle 5?
(b) Suppose in clock cycle 5, an ALU malfunction exception occurs. What instructions will be in the
IF, ID, EX, MEM, and WB stages, respectively, in clock cycle 6?
(Note: Each instruction in your answer should be one chosen from the given instructions, or NOP.)
