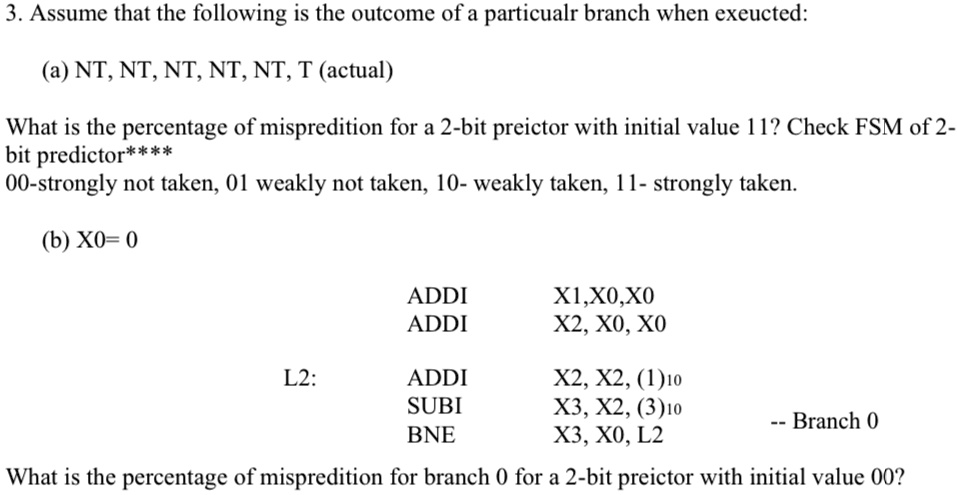

3. Assume that the following is the outcome of a particualr branch when exeucted:
(a) NT, NT, NT, NT, NT, T (actual)
What is the percentage of mispredition for a 2-bit preictor with initial value 11? Check FSM of 2-
bit predictor****
00-strongly not taken, 01 weakly not taken, 10- weakly taken, 11- strongly taken.
(b) X0= 0
ADDI X1,X0,X0
ADDI X2, X0, X0
L2:
ADDI X2, X2, (1)$_{10}$
SUBI X3, X2, (3)$_{10}$
BNE X3, X0, L2
-- Branch 0
What is the percentage of mispredition for branch 0 for a 2-bit preictor with initial value 00?
